40mm Height U-shaped Rail Less Solar Panel Roof Mounting Brackets

40mm height U-shaped mini rail solar mounting system

40mm Height U-shaped Rail Less Solar Panel Roof Mounting Brackets

1.Suitable for trapezoidal sheet metal roof, sandwich panel roof, etc.

2.Available in two heights, 30mm and 40mm.

3.Rail length can be customized.

Item No :
WS-R40-MINI
Material :
AL6005-T5,SUS 304&EPDM
Color :
Silver or Black
Warranty :
15 Years
Shipping Port :
Xiamen Port,China

Inquire Now

Product categories

New products

Product Details

Product Instruction

WS-R40-MINI is used for metal roof PV modules mounting.Micro-rail makes the quicker installation and more cost saving.It brings installer a more cost-effective and quicker installation structure.

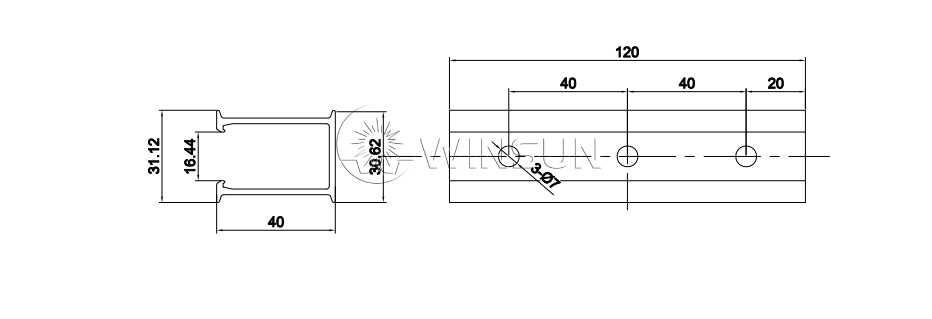

The default length of WS-R40-MINI is 120mm, but you can also customize the length according to the actual needs.

The whole set of mini rail includes self-tapping screws and rubber pad. However, you can also buy the mini rail alone without accessories.

Click to see more information about 30mm height U-shaped mini rails.

Item NO.	WS-R40-MINI
Material	Aluminum 6005-T5,SUS 304 & EPDM
Surface	Anodized
Color	Silver or Black
Length	120mm or Customized
BOM	120mm R40 rail1,Self-tapping screw3,Rubber pad*1
Warranty	15 Years

U-shaped mini solar mounting bracket
