EU Warehouse Trapezoidal Sheet Metal Roof Solar Mounting Structure 60mm Height Mini Rail
1.60mm height mini rail segments are supplied with EPDM rubber pad covered bottom side.
2.Used for rapezoidal sheet metal roof, corrugated sheet metal roof and sandwich panel roof
3.EU warehouse,fast delivery!
Installation Site :
Trapezoidal Sheet Metal, Corrugated Sheet Metal,Sandwich PanelWind Load :
35m/sSnow Load :
2KN/m2Material :
Aluminum 6005-T5,SUS304 Stainless Steel&EPDMWarranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

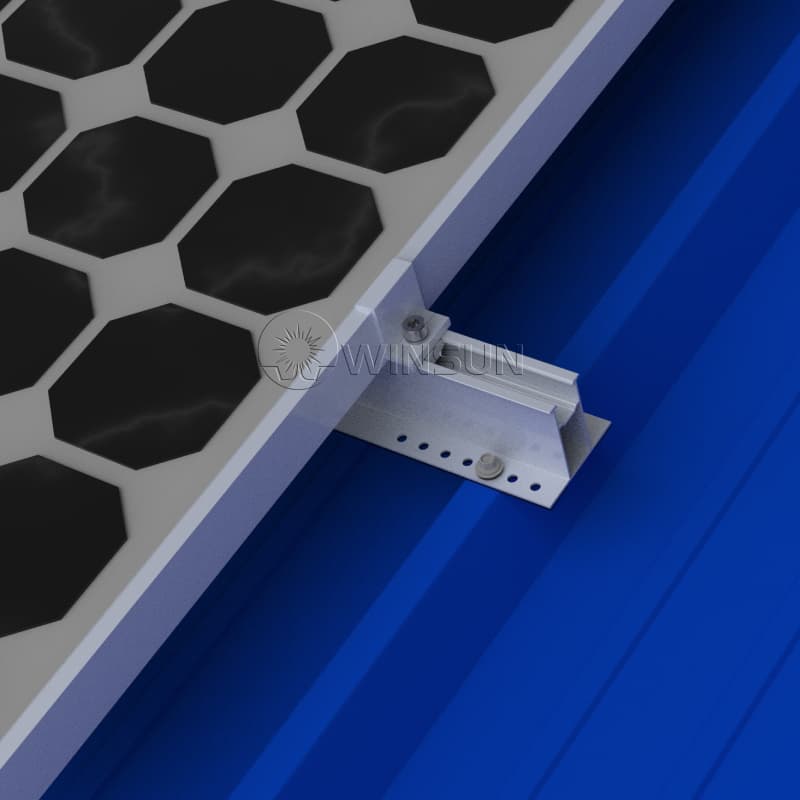

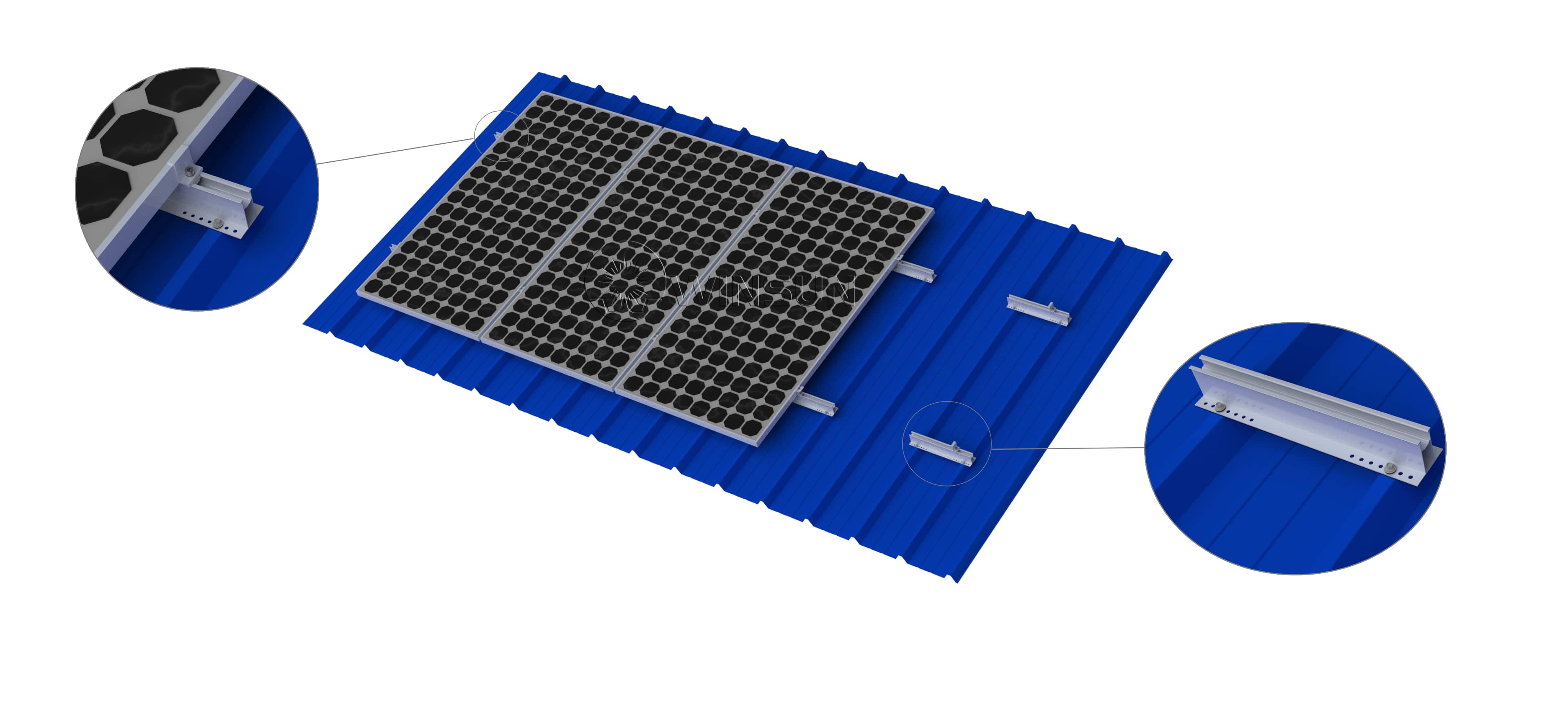

Winsun R60 mini rail solar mounting bracket is suitable for PV modules installation of trapezoidal sheet metal roof, corrugated sheet metal roof and sandwich panel roof. Mini-rails for easier and faster installation, also saving on material costs.

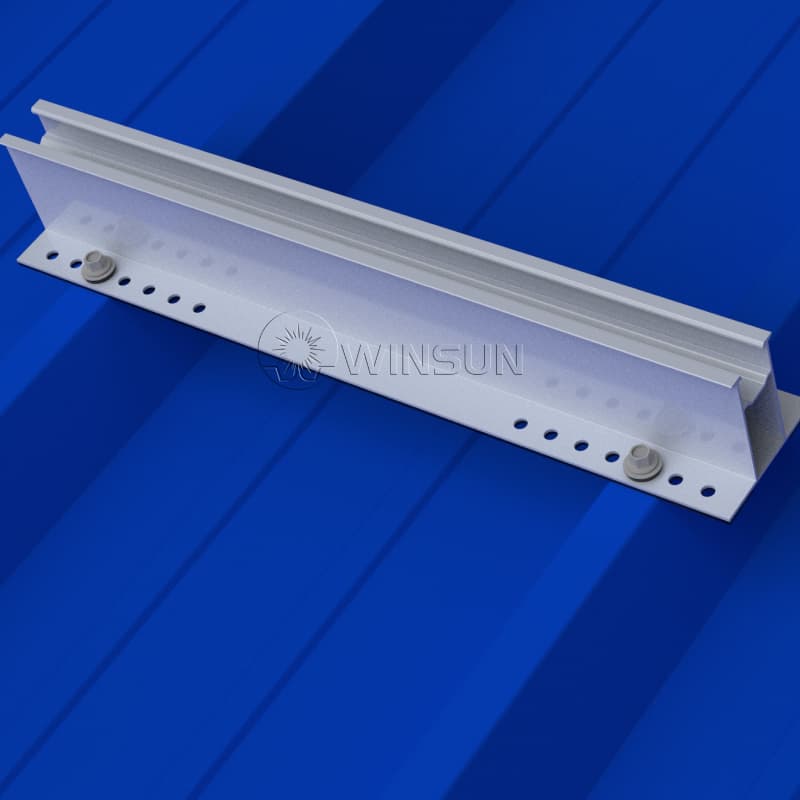

WS-R60-MINI mini rail is 60mm high and 385mm long (or customized length), and EPDM sealing tape are pre-installed at the bottom of the rail.
In stock in Europe,fast delivery!Contact to order now!
Technical Parameter
| Installation Site | Trapezoidal Sheet Metal Roof, Corrugated Sheet Metal Roof and Sandwich Panel Roof |
| Material | Aluminum 6005-T5,SUS304 Stainless Steel&EPDM |
| Wind Load | 35m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60°(the same angle as roof) |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Warranty | 15 Years |
Details
Components
 |
 |
 |

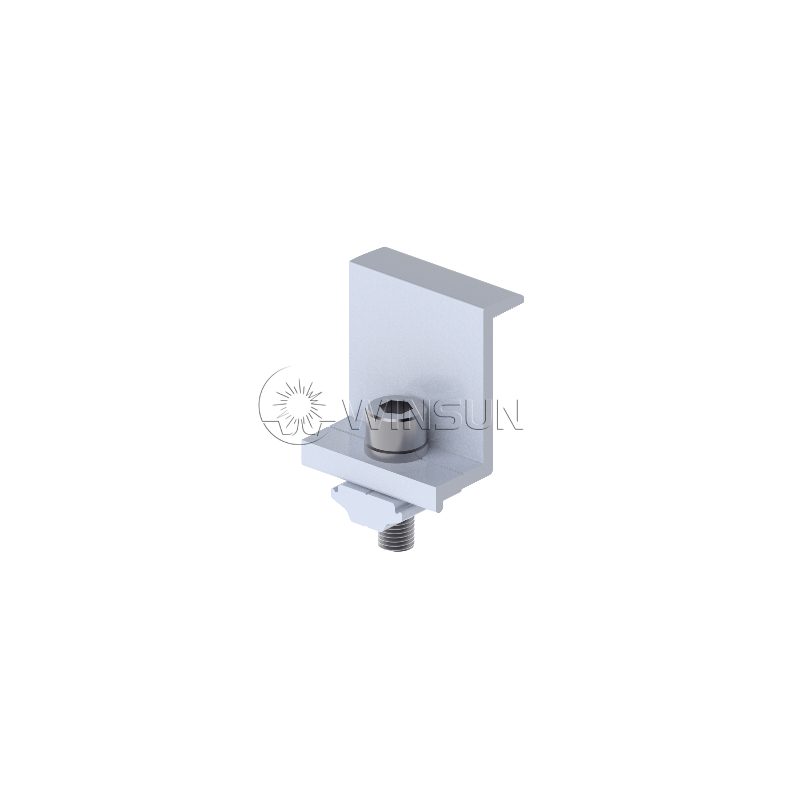

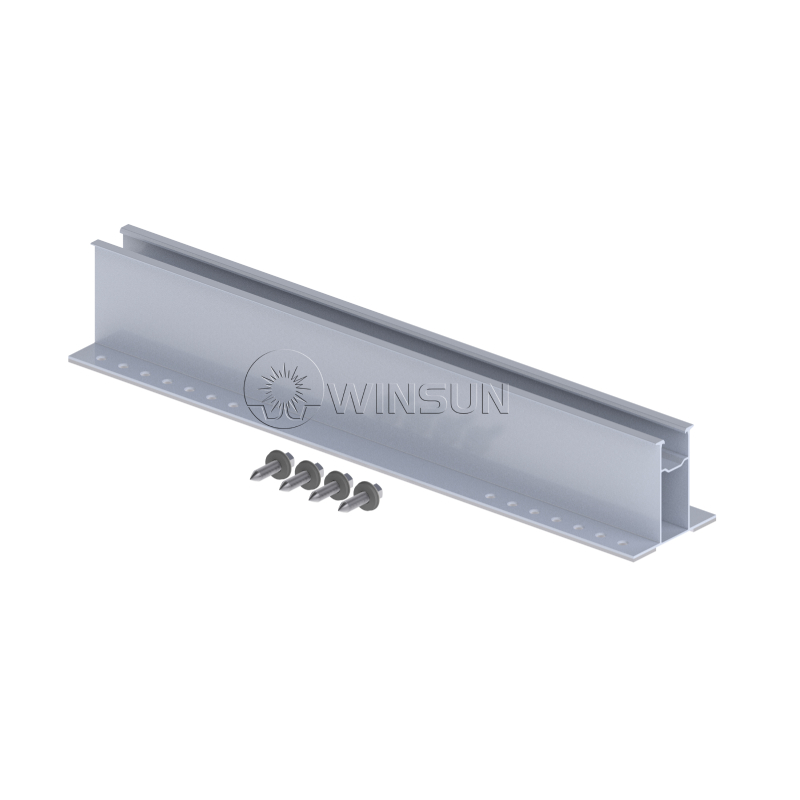

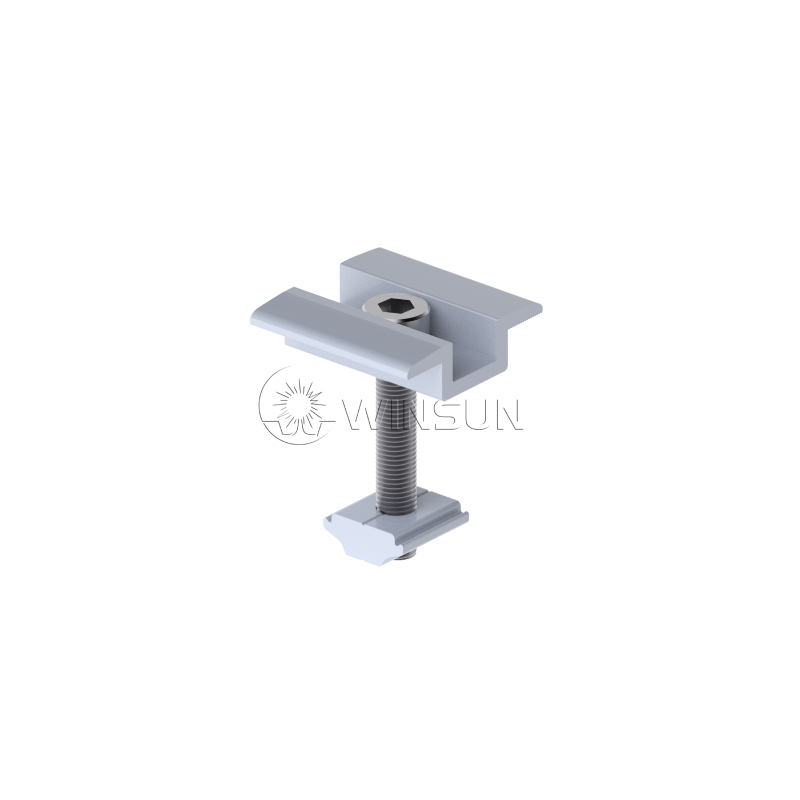

| 60mm Height Mini Rial | Middle Clamp Kit | End Clamp Kit |
1.Short rail installation for cost savings.Rail length customizable. 2.Rail segments are supplied with EPDM rubber pad covered bottom side. 3.In stock in EU,fast delivery.
