Carbon Steel Single Pole Photovoltaic Carport Solar Carport Mounting Structure

Carbon Steel Single Pole Photovoltaic Carport Solar Carport Mounting Structure

Winsun single-pole solar carport is constructed from high-strength carbon steel with a hot-dip galvanized surface treatment, providing enhanced structural stability and excellent corrosion resistance.

  • Installation Site :

    Open Filed
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    Q235B & SUS304
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun single pole steel solar carport structure is constructed from high-strength carbon steel, providing enhanced structural stability. Additionally, the surface is treated with hot-dip galvanization, improving corrosion resistance. The single-pole design offers greater flexibility in parking space planning, making parking more convenient.



Technical Parameter



Installation Site Open Filed
Material Q235B & SUS304
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0°~30°
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years

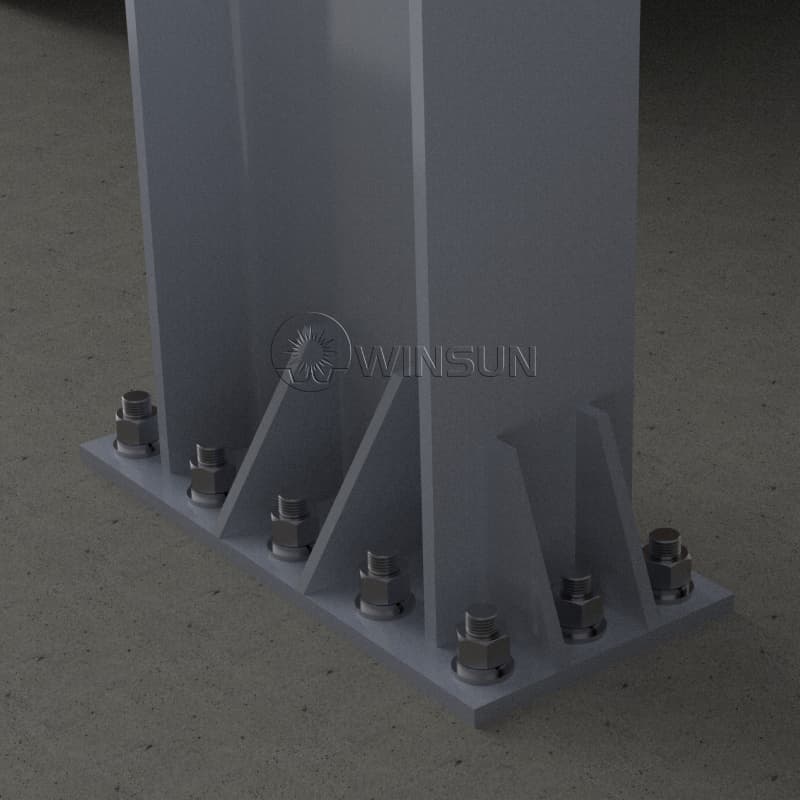

Details

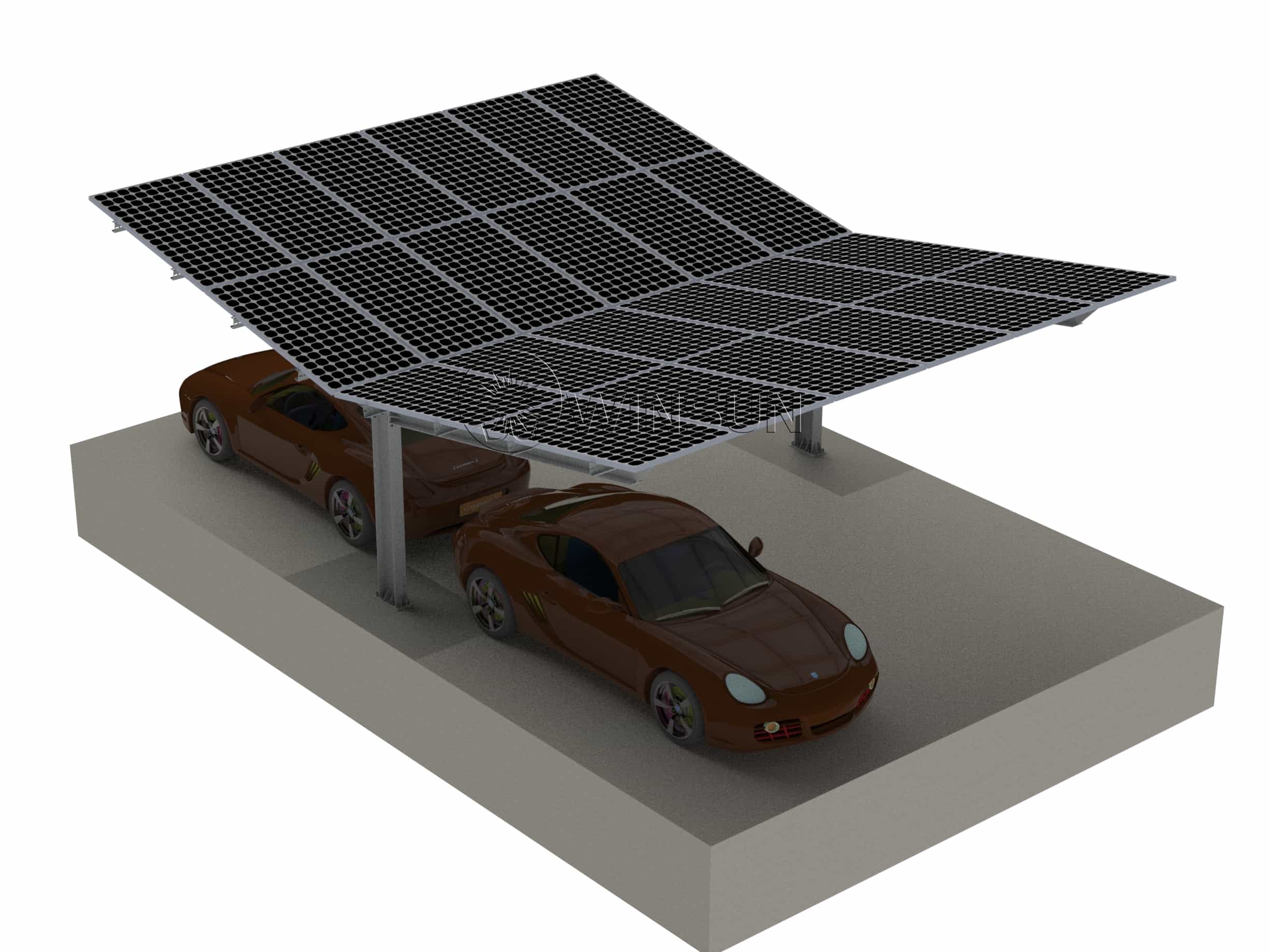

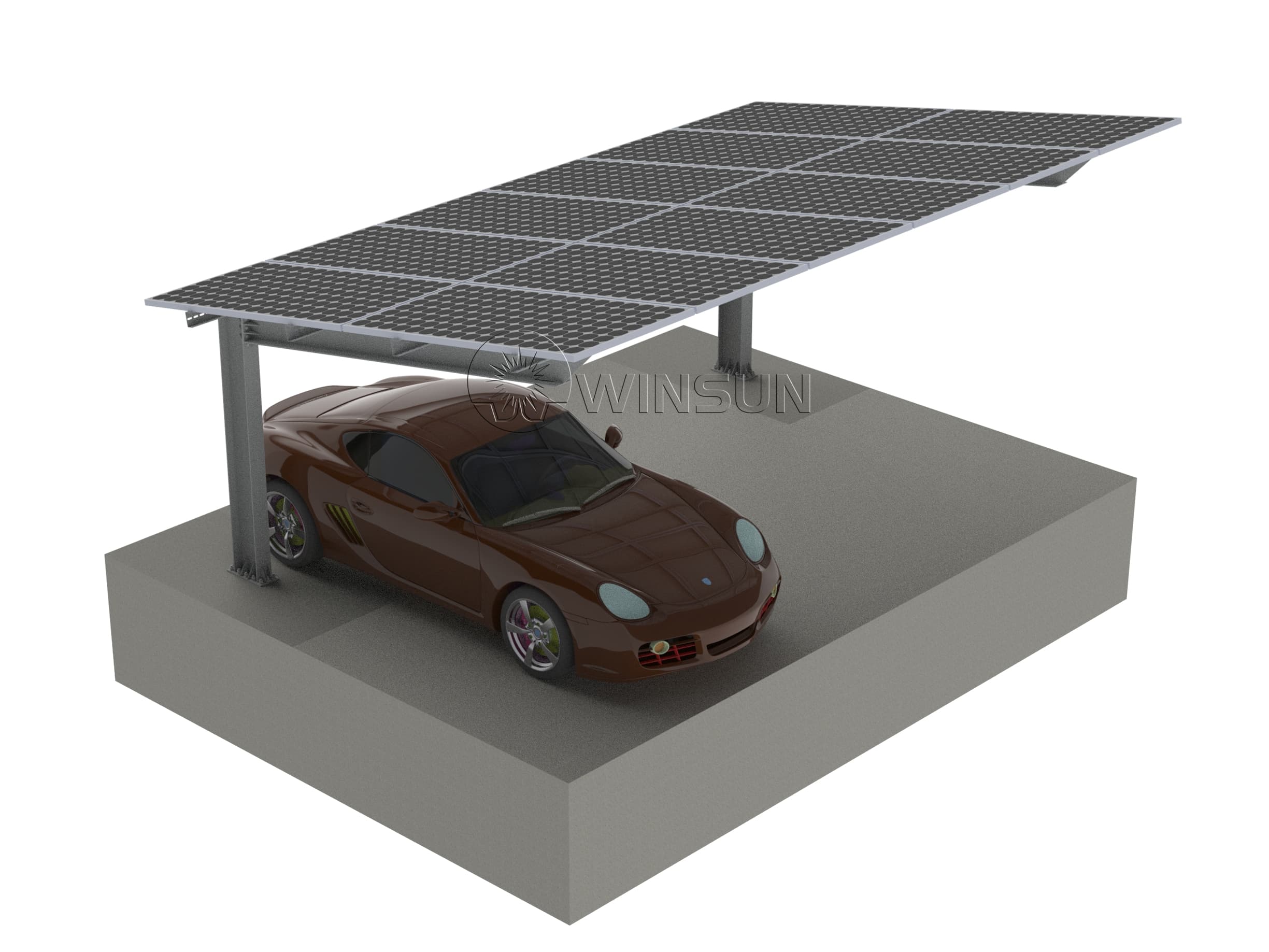

single pole steel solar carport Y-shaped steel solar carport
Steel Carport With One Row Of Parking Spaces Steel Carport With Two Rows Of Parking Spaces



Exemplary Illustration

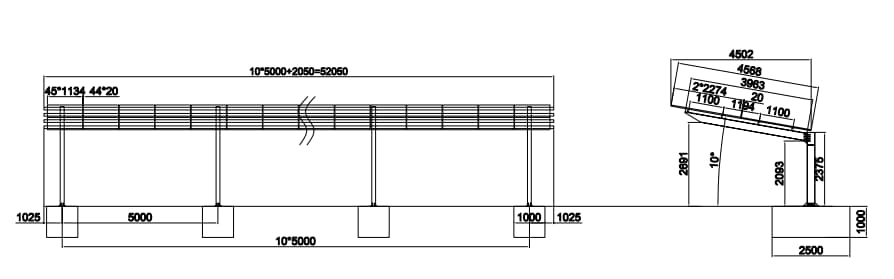

steel carport with one row of parking spaces

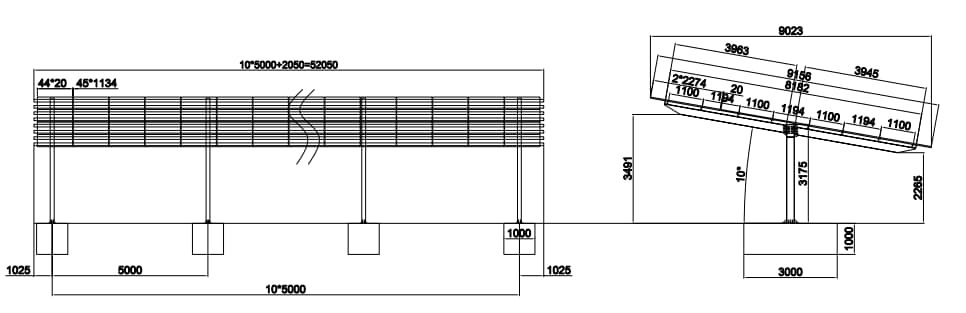

steel carport with two rows of parking spaces
