U-Shaped Solar Mini Rail for Trapezoidal Metal Roofs – Optimized for Push-In Quick-Mount Clamps

U-Shaped Solar Mini Rail for Trapezoidal Metal Roofs – Optimized for Push-In Quick-Mount Clamps

✔Optimized for Quick-Mounting: Specialized geometry designed for a seamless fit with push-in clamps, ensuring a faster and more intuitive installation.

✔Superior Water-Tight Integrity: Pre-applied high-density EPDM gaskets and premium self-drilling screws guarantee a reliable, leak-proof seal.

✔Cost-Effective Logistics: Compact, lightweight design significantly reduces shipping costs and simplifies on-roof material handling.

Item No :
WS-R30-MINI-Q
Material :
AL6005-T5,SUS 304&EPDM
Warranty :
15 Years
Color :
Silver or Black
Shipping Port :
Xiamen Port,China

Inquire Now

Product categories

New products

Product Details

Product Instruction

Our classic U-Shaped Mini Rail has reached its next evolution. Engineered for high-efficiency solar racking, this optimized version is designed to work seamlessly with our Quick-Mount Clamps. By refining the internal geometry to perfectly accommodate these clamps, this rail enables installers to secure solar panels on trapezoidal metal roofs with significantly higher precision and enhanced installation efficiency.

Key Features

✔ Optimized for Quick-Mounting: Featuring a specialized internal geometry, this rail is perfectly adapted for push-in clamps. This ensures the entire mounting process is significantly more streamlined, intuitive, and convenient for installers on-site.

✔ Industrial-Grade Durability: Manufactured from high-grade Anodized Aluminum AL6005-T5, ensuring a long-lasting service life even in challenging environmental conditions.

✔ Water-Tight Integrity: Features pre-applied, high-density EPDM gaskets and premium self-drilling screws to guarantee a reliable, leak-proof seal on trapezoidal profiles.

✔ Cost-Effective Logistics: The compact, lightweight design significantly reduces shipping costs and on-site handling efforts compared to traditional long rail systems.

✔ Universal Fit: Precision-engineered for compatibility with most standard trapezoidal and sandwich panel metal roof sheets.

Item NO.	WS-R30-MINI-Q
Material	Aluminum 6005-T5,SUS 304 & EPDM
Surface	Anodized
Color	Silver or Black
Length	120mm or Customized
BOM	120mm R30 rail1,Self-tapping screw3,Rubber pad*1
Warranty	15 Years

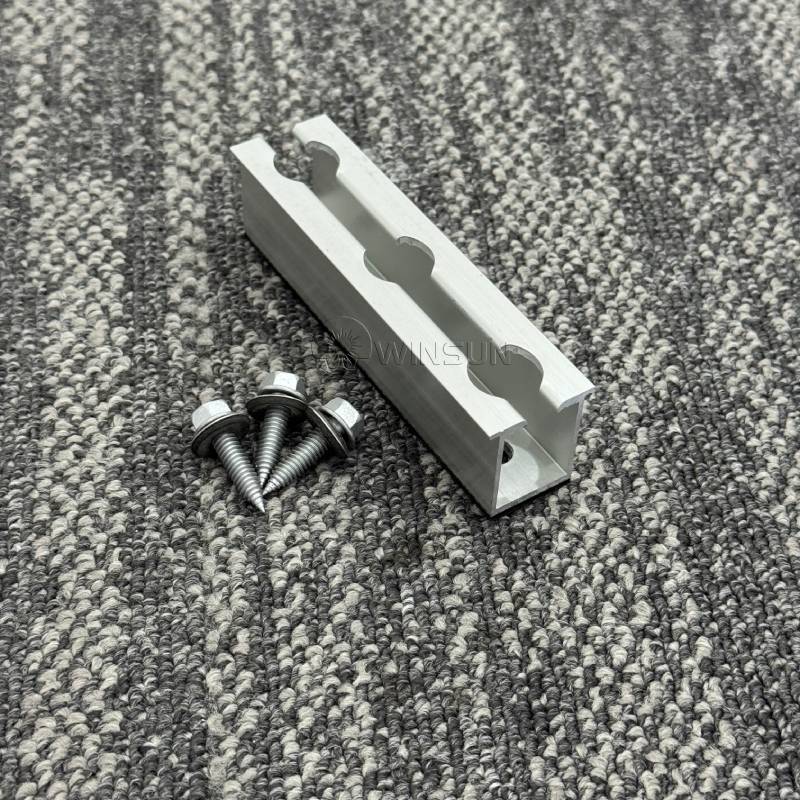

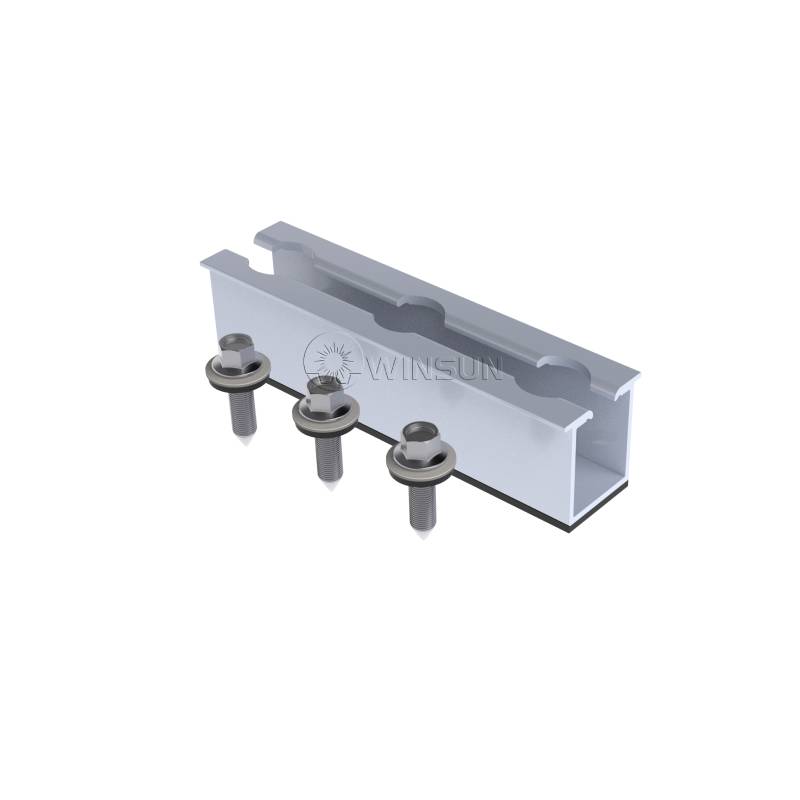

U-Shaped Solar Mini Rail with 3 Self-drilling Screws and EPDM Gaskets

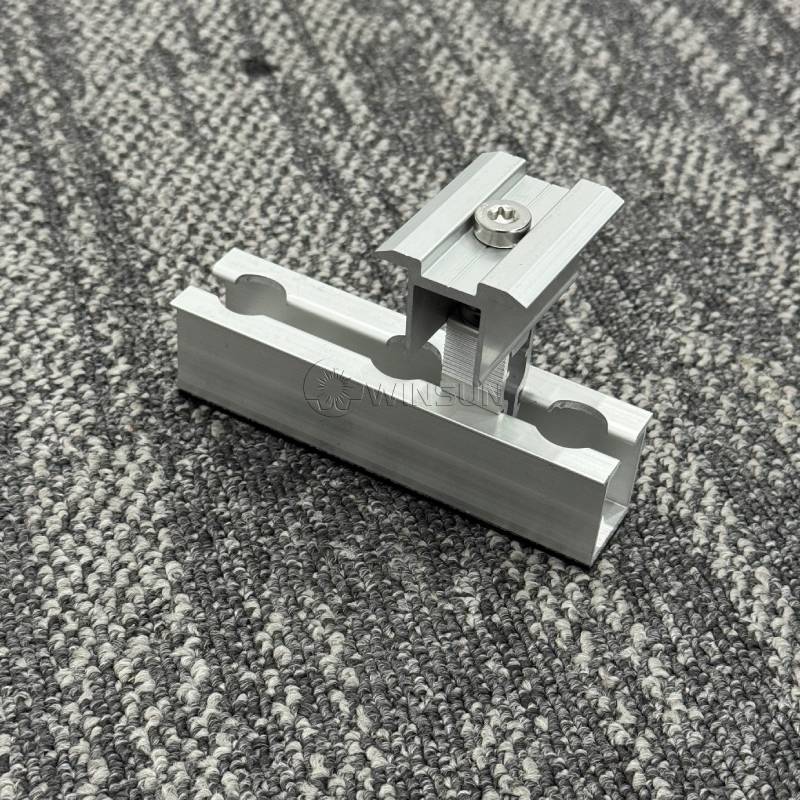

Installation view of Quick-Mount Mid Clamp secured on U-Shaped Mini Rail

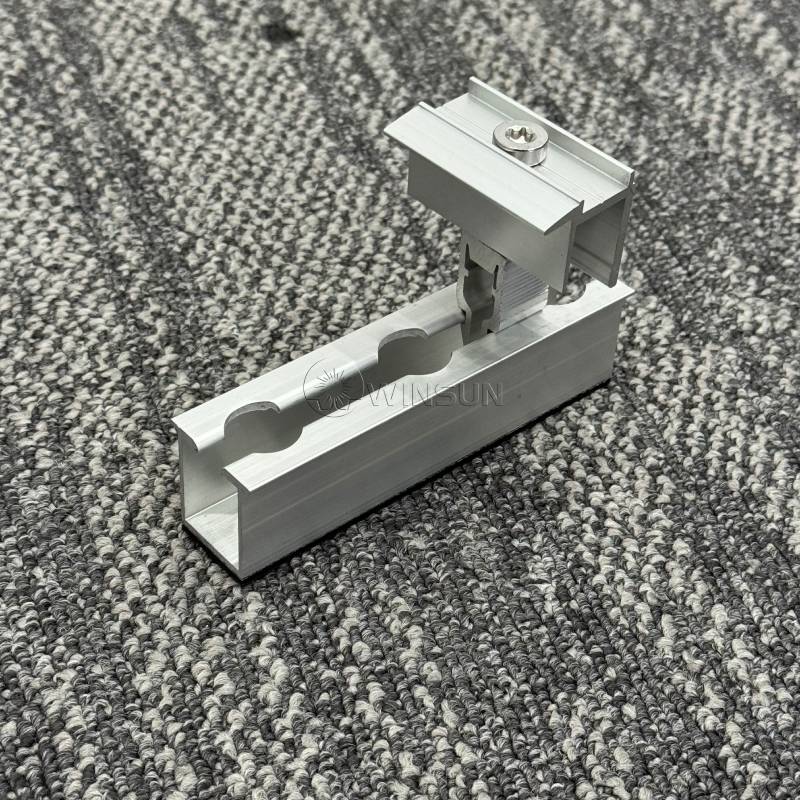

Installation view of Quick-Mount End Clamp secured on U-Shaped Mini Rail
