Steel Solar PV Ground Mounting System for Sloped Terrain

Steel Solar PV Ground Mounting System for Sloped Terrain

1.Special developed for slop ground.

2.The structure is made of high-strength carbon steel with anti-corrosion treatment on the surface.

3.Highly pre-assembled before shipment.



  • Installation Site :

    Opend Field
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    Carbon Steel
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun sloped ground solar mounting system is designed for solar PV projects on sloped terrains. This system features a unique connector design that allows for adjustment in both east-west and north-south directions. The structure is constructed from high-strength carbon steel and is treated for corrosion resistance, ensuring its durability and reliability.

For surface treatment, you have the option to choose between galvanization and Zn-Al-Mg coatings.

For the foundation, there are ramming post, ground screw foundation, and cement foundation to choose from.



Technical Parameter



Installation Site Open Field
Material Carbon Steel
Surface Zn-Al-Mg Coating or Hot Dipped Galvanized
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0°~60°
Foundation Ramming Posr,Ground Screw or Concrete Base
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

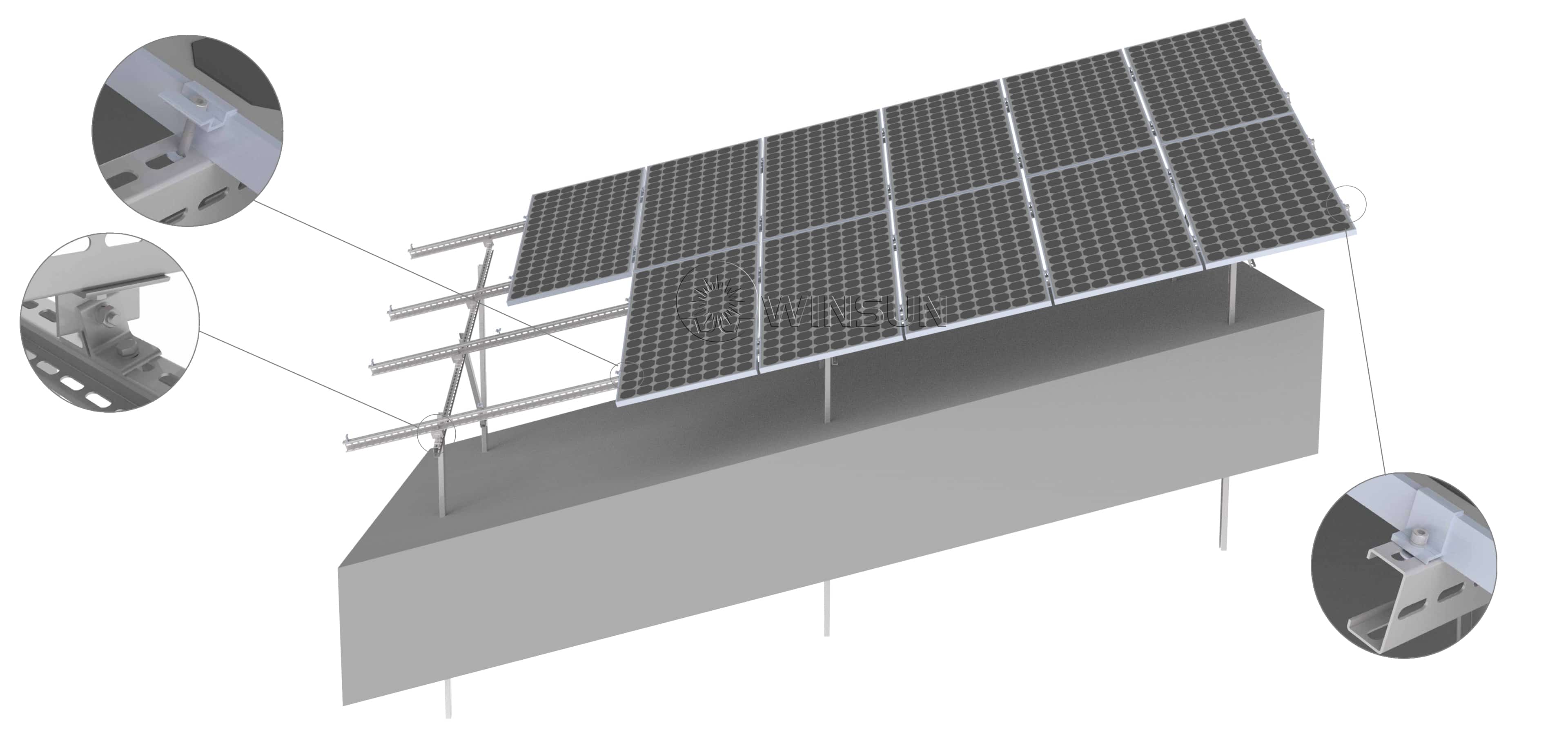

sloped ground solar mounting system

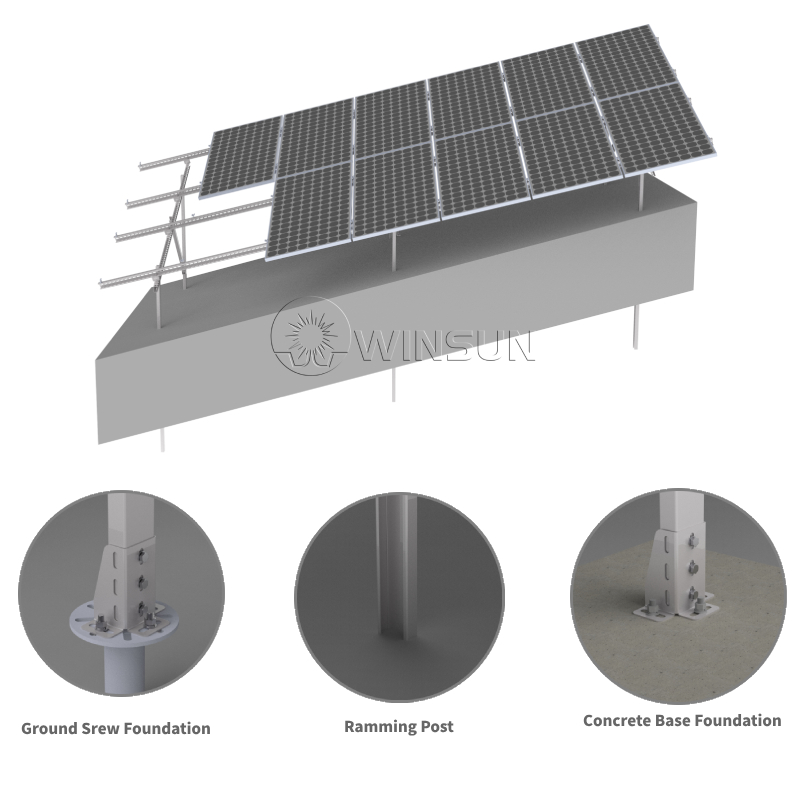

Foundation Type

ramming post steel solar ground mounting system concrete base steel solar ground mounts ground screw foundation steel solar ground mounting bracket

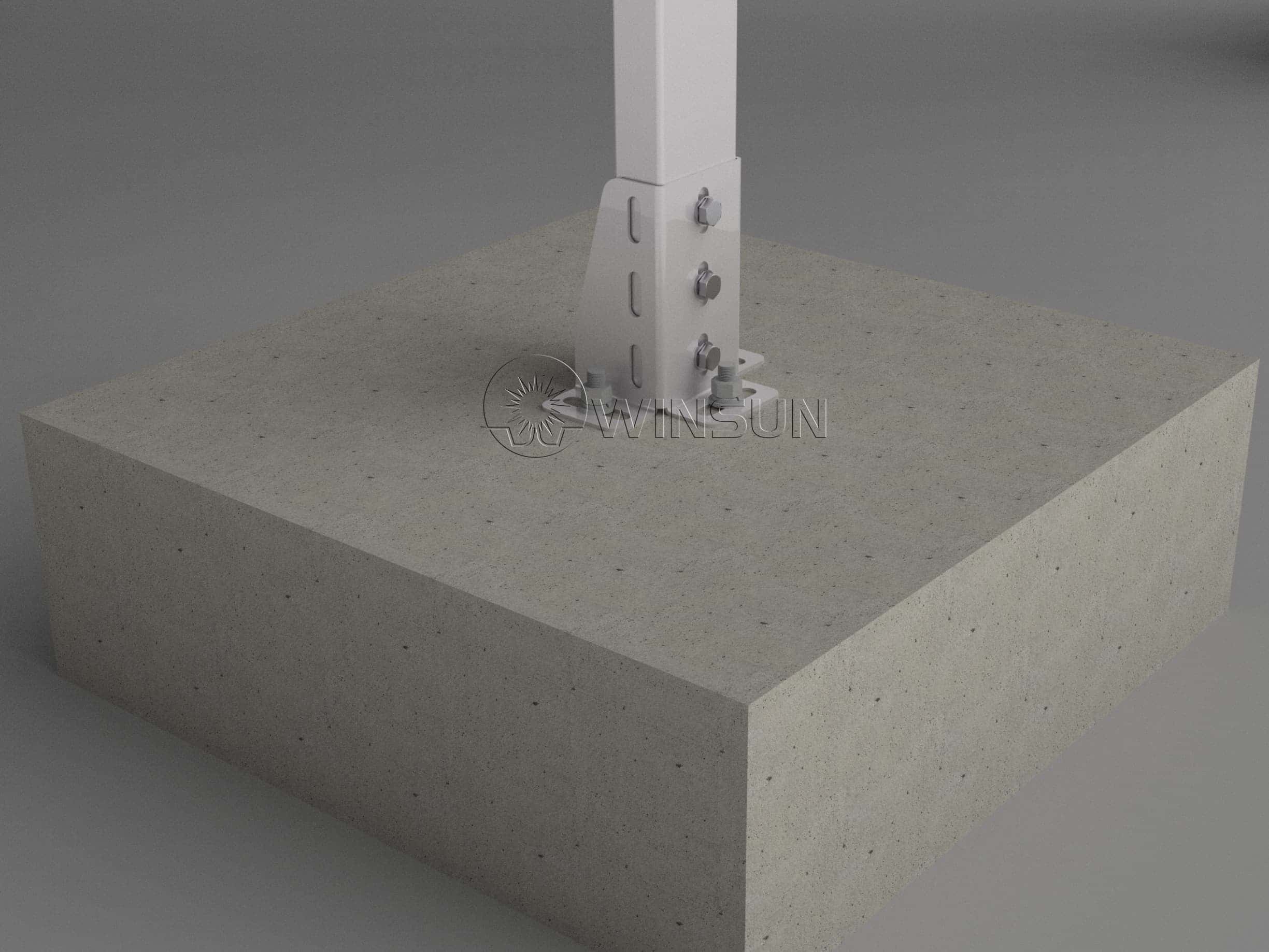

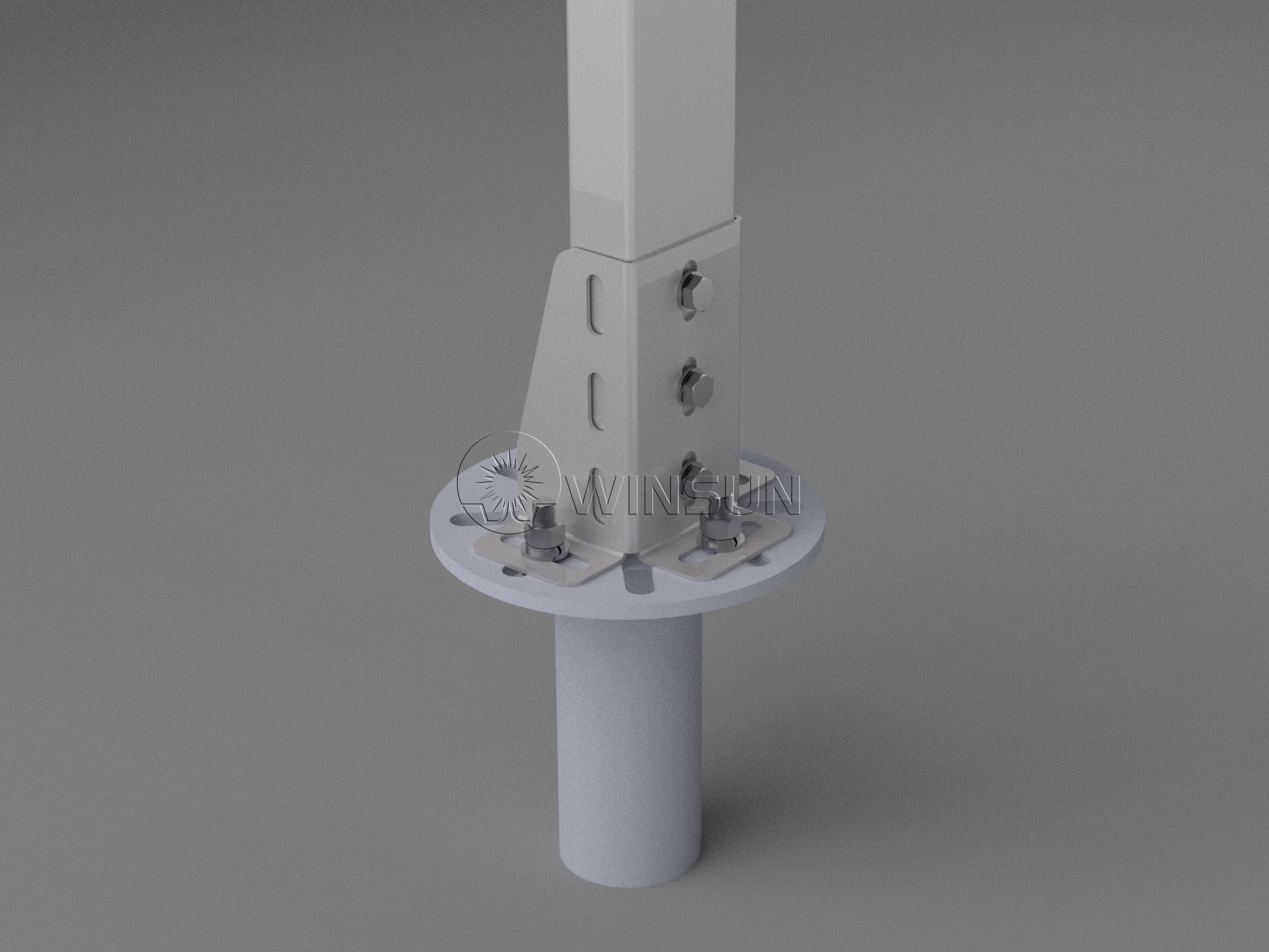

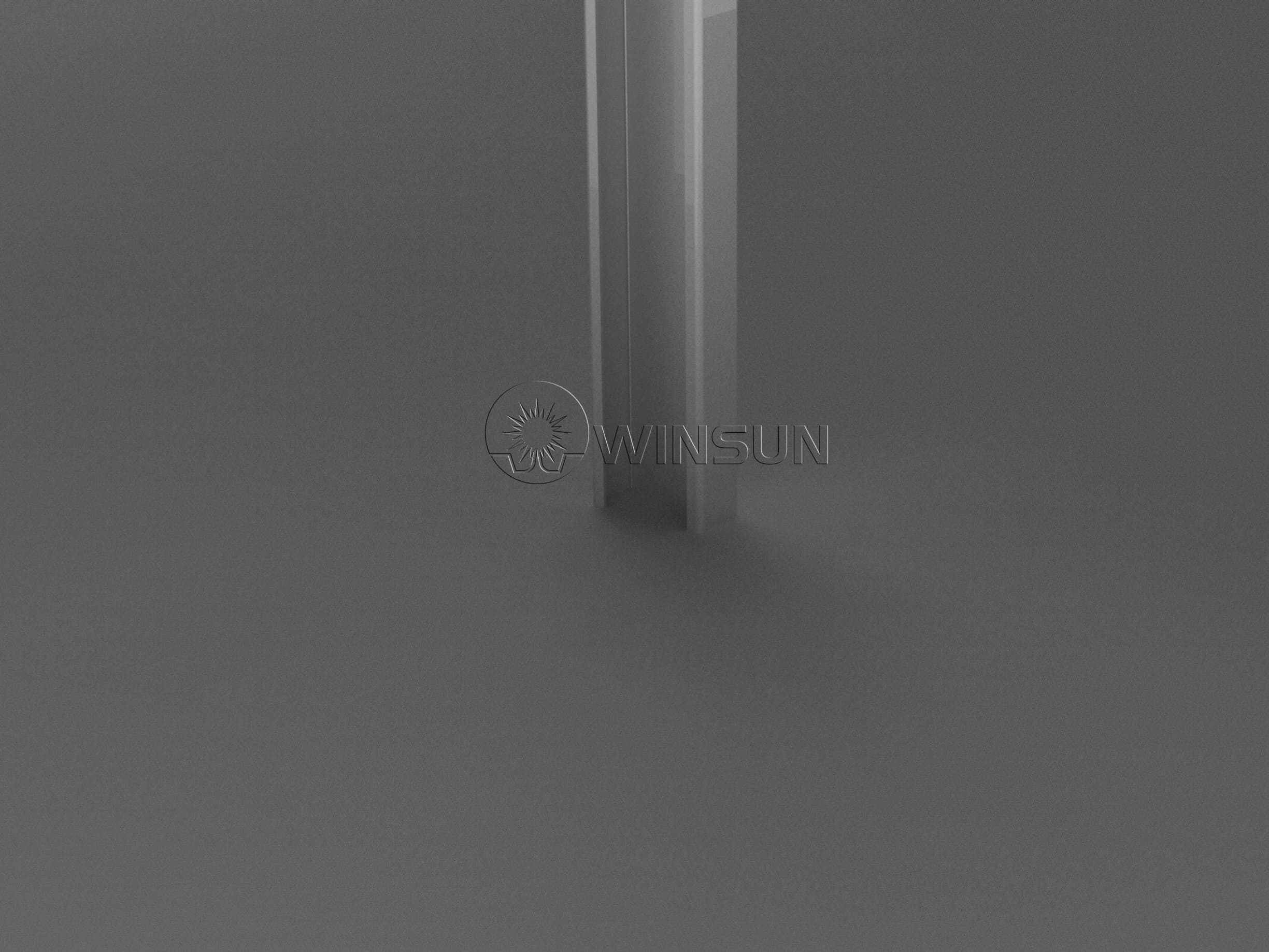

Ramming Post Concrete Base Foundation Ground Screw Foundation
