Triangle Ballasted Solar Mounting System For Concrete Flat Roof Solar Panel Mount

Triangle Ballasted Solar Mounting System For Concrete Flat Roof Solar Panel Mount

1.Tilt angle can be customized.

2.Simple structure,easier and faster to install.

3.Pre-assembled to the greatest extent before delivery.





  • Installation Site :

    Flat Roof
  • Wind Load :

    40m/s
  • Snow Load :

    2KN/m2
  • Material :

    AL6005-T5 & SUS304
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun triangle ballasted mounting system is developed for flat roof solar panel mount.Non-penetrating mounting solution will not damage the rooftop.The installation angle can be customized according to the customer’s requirements.



Technical Parameter



Installation Site Flat Roof
Material Aluminum 6005-T5 & SUS304 Stainless Steel
Wind Load 40m/s
Snow Load 2KN/m2
Tilt Angle 0° ~ 60°
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

flat roof tilt solar mounting-triangle ballasted

Components

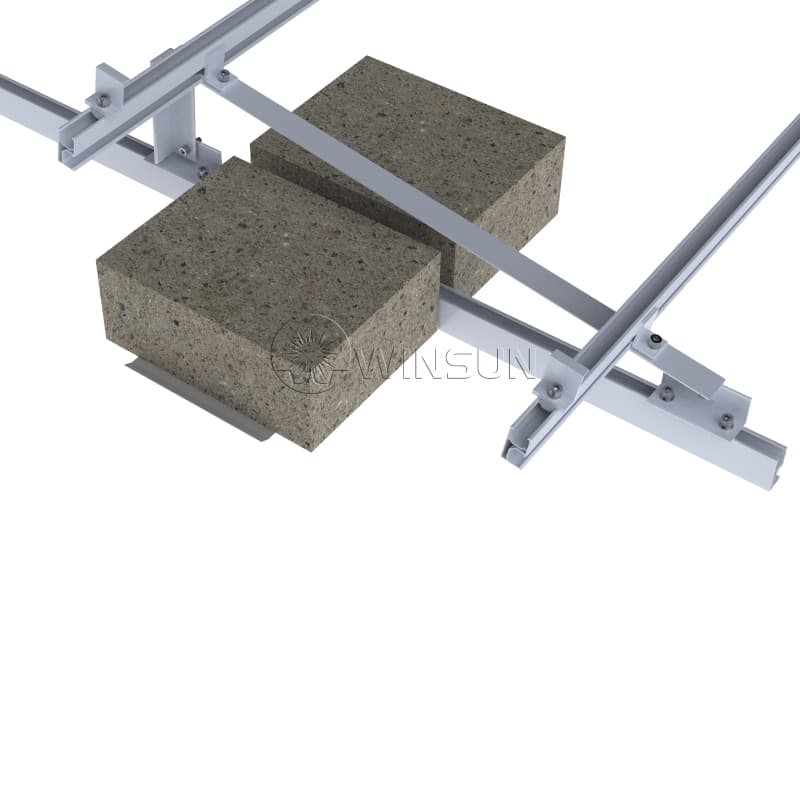

triangle bracket for solar panel tilt mounts aluminum solar mounting rail rail clamp kit PV modules fastener-middle clamp

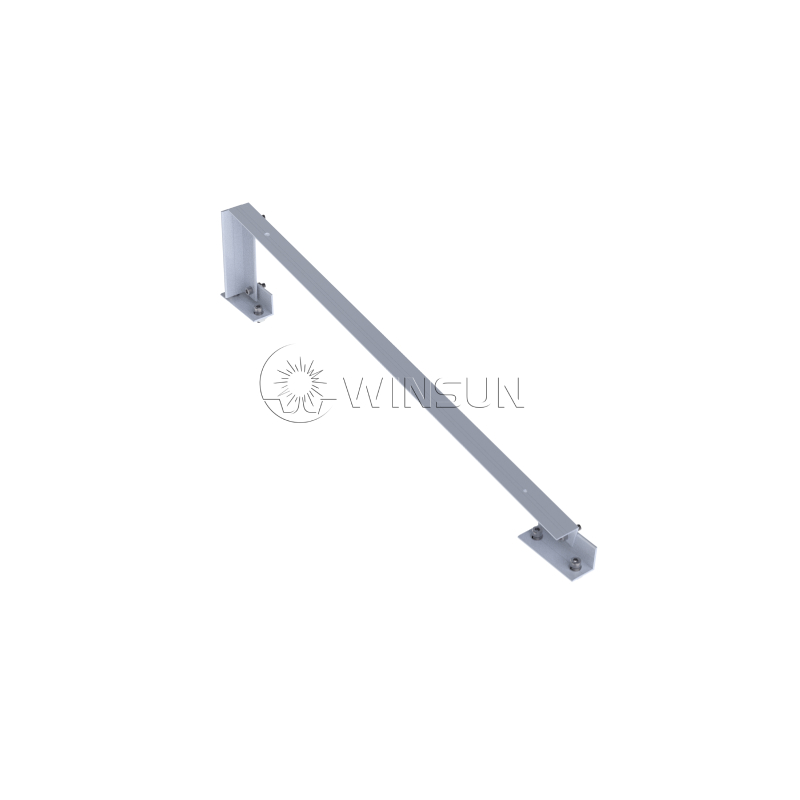

Triangle Bracket For Ballasted System R48 Solar Mounting Rail Rail Clamp Kit Middle Clamp Kit

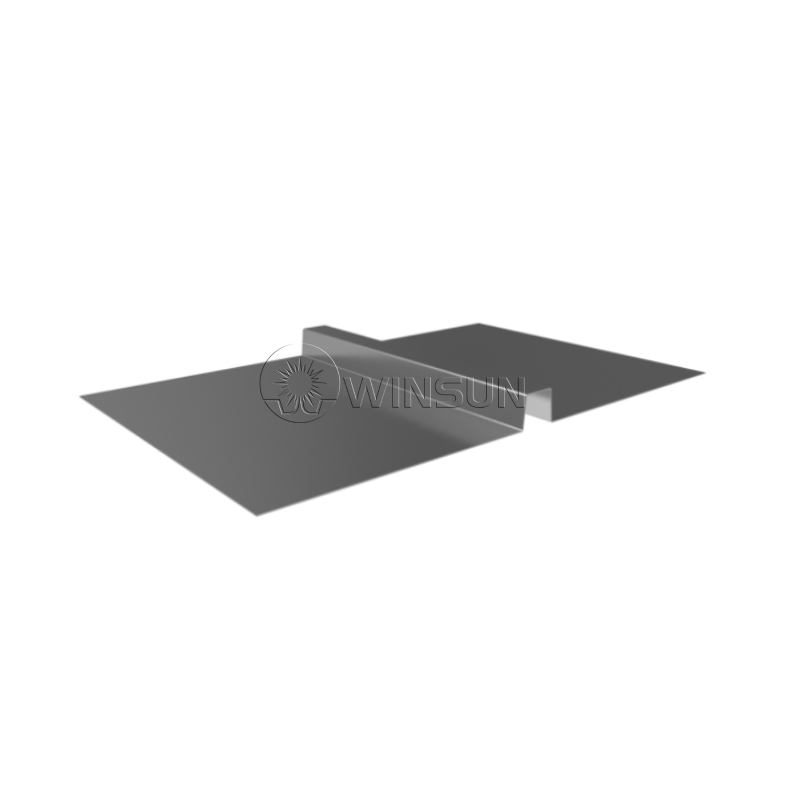

PV modules fastener-end clamp ballast tray
End Clamp Kit Ballast Try
