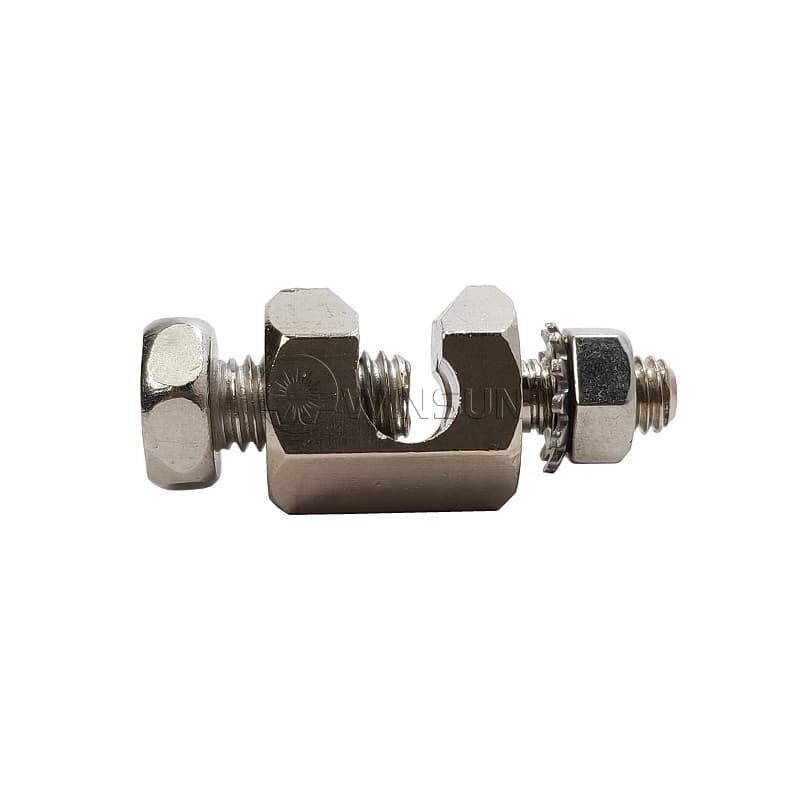

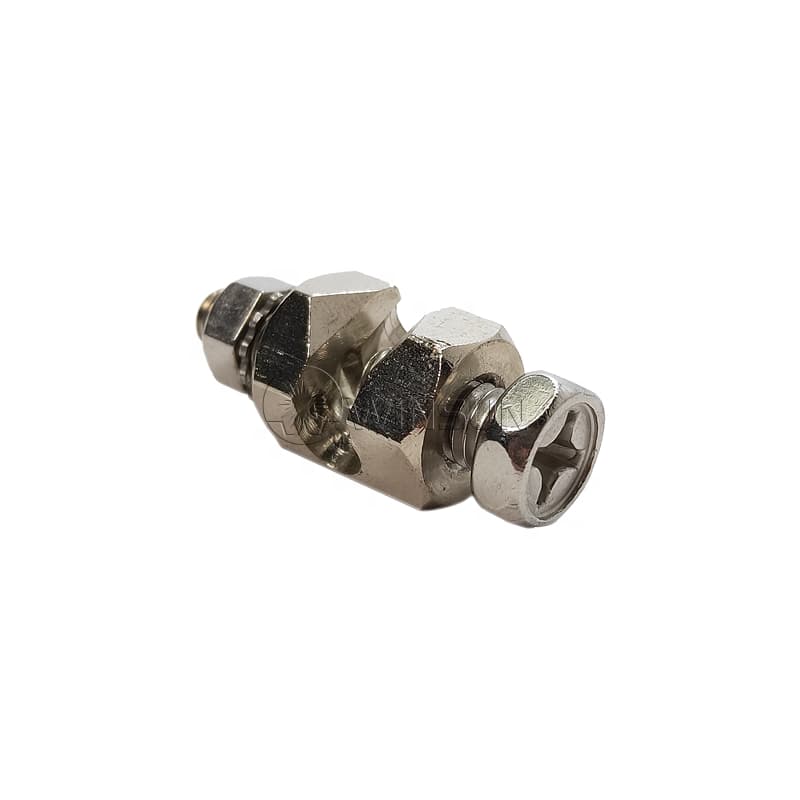

WS-GB Grounding Bolt For PV Modules

grounding bolt for solar panel
grounding bolt for solar panel
grounding bolt for solar panel

WS-GB Grounding Bolt For PV Modules

Used for PV modules and related products that require grounding for safety reasons.

  • Item No :

    WS-EB

  • Material :

    Tin-plated Copper

  • Warranty :

    15 Years

  • Shipping Port :

    Xiamen Port,China
Inquire Now
Product Instruction

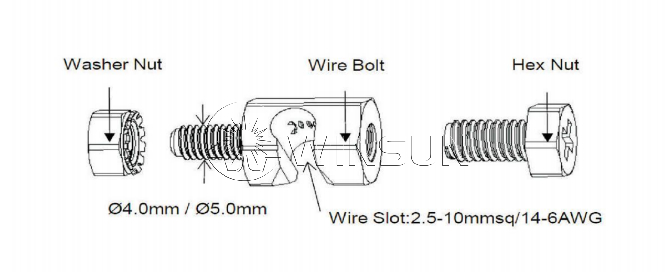

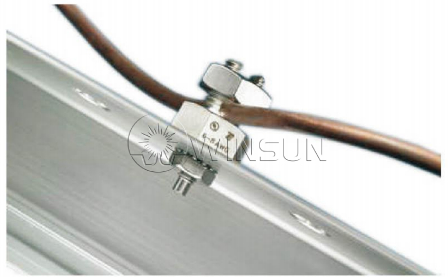

WS-EB grounding bolt shortens the installation time of a ground wire to a solar panel frame. The threaded clamp inserts through a hole in the frame and uses two hex nutts to help provide a reliable connection. The earth clamp handles 6 and 8AWG(13.3 and 8.4mm2)solid, uninsulated copper wire. In connecting to the frame, the clamp body and the one-piece lock washer nut penetrates the surface of the aluminum frame helping to create a reliable ground path. Spring loaded grounding connector featture copper braid between brass jaw pads for optimum conductivity. Strong spring pressure, available in different amperages.



Item NO. WS-EB
Material Tin-plated Copper
Frame Thickness Range
 0.8~4.5mm
Mounting Hole Diameter
 Ø4.0mm/Ø5.0
Ambient Temperature
 -40°C ~ +90°C
Cable Size(mmsq/AWG)
 2.5/4/6/10 & 14/12/10/8/6
Used Voltage 600-1500V



grounding bolt for solar panel

grounding bolt for solar panel





Hot Tags : Solar Mounting Accessories Grounding Bolt For Solar Panel PV Modules Grounding Bolt Grounding Components For Solar Energy System Grounding Bolt For Lightning Protection Solar Panel Lightning Protection Components
