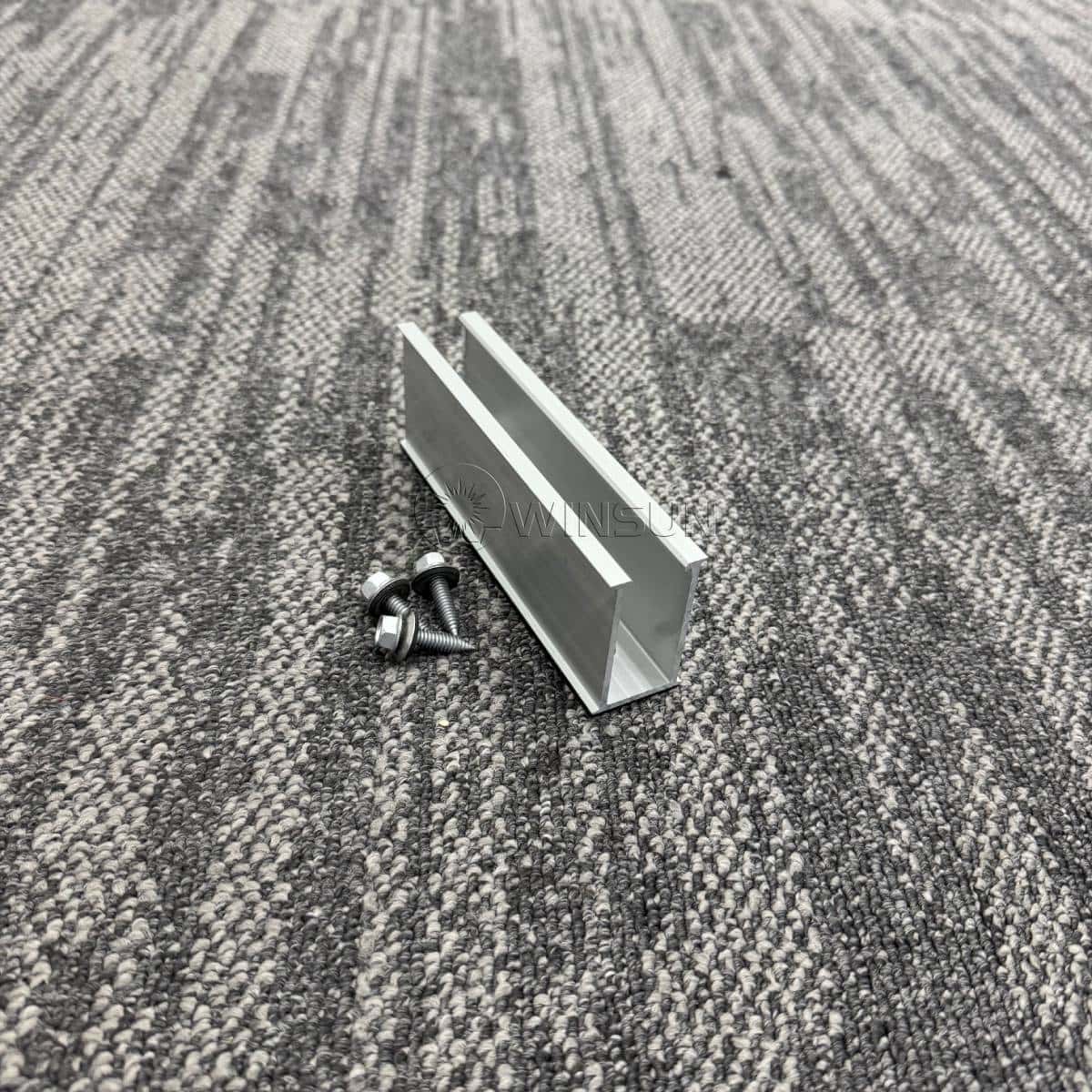

50mm Height U-Shaped Mini Rail for Trapezoidal or Corrugated Metal Roof Solar Panel Mounting

Solar Mounting Bracket for Trapezoidal Sheet Metal Roofs

50mm Height U-Shaped Mini Rail for Trapezoidal or Corrugated Metal Roof Solar Panel Mounting

1. Pre-installed EPDM sealing pad for enhanced waterproof performance

2. Quick and cost-effective mounting solution for sheet metal roofs

3. Standard 120 mm length with customizable options available

Item No :
WS-R50-MINI
Material :
AL6005-T5,SUS 304&EPDM
Color :
Silver or Black
Warranty :
15 Years
Shipping Port :
Xiamen Port,China

Inquire Now

Product categories

New products

Product Details

Product Instruction

This 50 mm height U-shaped mini rail is designed for solar panel installation on sheet metal roofs, offering a compact and efficient mounting solution for metal roof PV projects. Compared with traditional long rail systems, the mini rail design helps reduce material usage and overall installation cost.

The rail features a pre-installed EPDM sealing pad on the bottom side, improving waterproof performance when mounted directly onto metal roofing sheets. Its U-shaped profile provides stable support for solar modules while keeping the overall structure simple and practical for on-site installation.

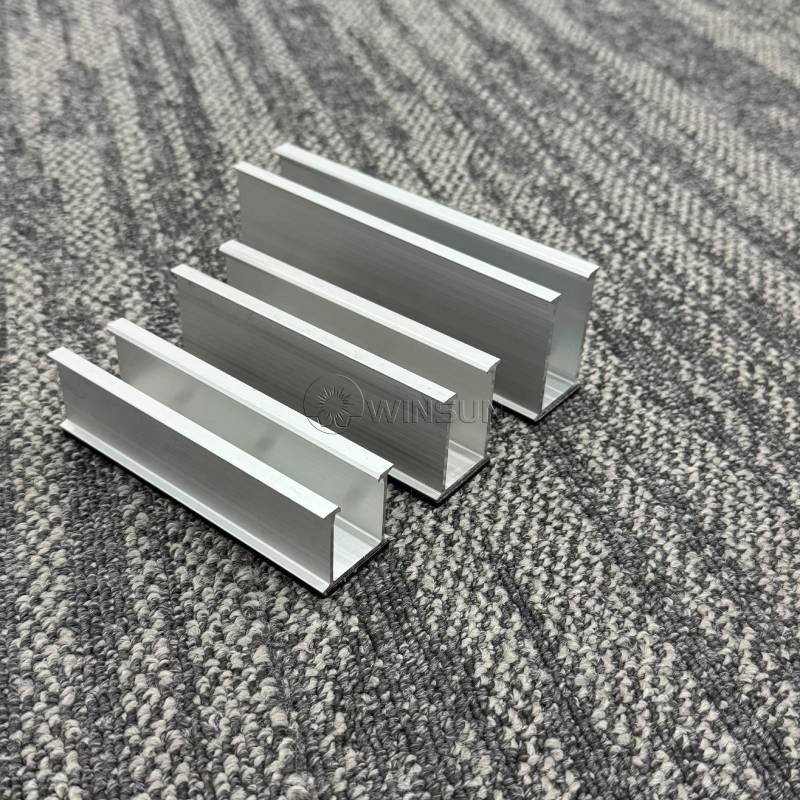

In addition to the 50 mm height version, this product series also includes 30 mm height U-shaped mini rails and 40 mm height U-shaped mini rails, allowing installers to choose the most suitable height according to different roof profiles and project requirements. Custom heights can also be provided to meet specific installation needs.

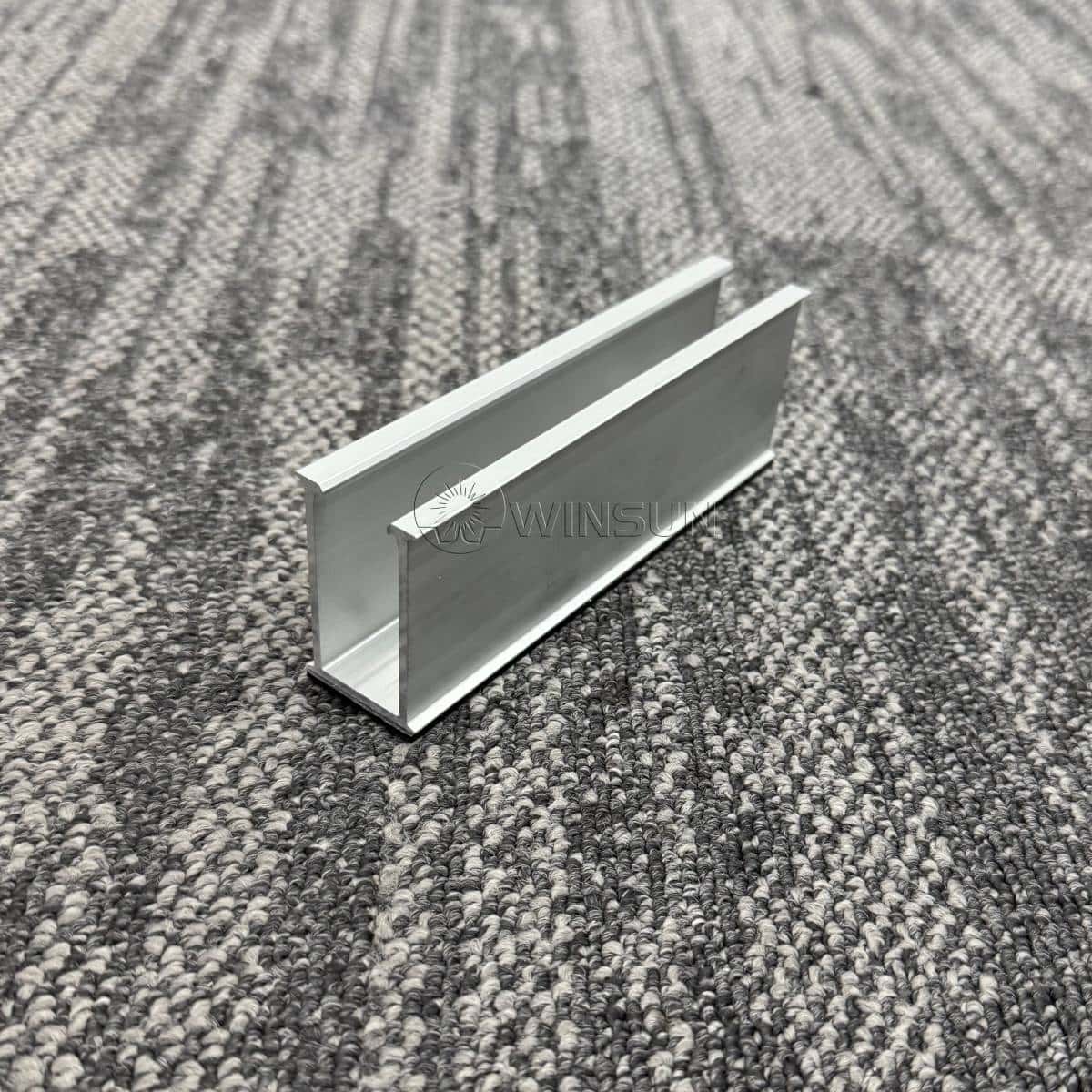

This U-shaped mini rail is suitable for a wide range of metal roof solar mounting applications, including trapezoidal sheet metal roofs, corrugated metal roofs, and sandwich panel roofs, making it a flexible solution for commercial and industrial PV projects.

Item NO.	WS-R50-MINI
Material	Aluminum 6005-T5,SUS 304 & EPDM
Surface	Anodized
Color	Silver or Black
Length	120mm or Customized
BOM	120mm R50 rail1,Self-tapping screw3,Rubber pad*1
Warranty	15 Years
