Adjustable Angle Tilt Solar Mounting System For Sheet Metal Roof

Adjustable Angle Tilt Solar Mounting System For Sheet Metal Roof

1.Tilted installation with adjustable angles.

2.Two installation options are available: direct fastening with screws or use with standing seam roof clamps.

3.It's suitable for both metal roofs and concrete roofs.

  • Installation Site :

    Metal Roof or Concrete Roof
  • Wind Load :

    45m/s
  • Snow Load :

    1.5KN/m2
  • Material :

    Aluminum 6005-T5 & SUS304 Stainless Steel
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction

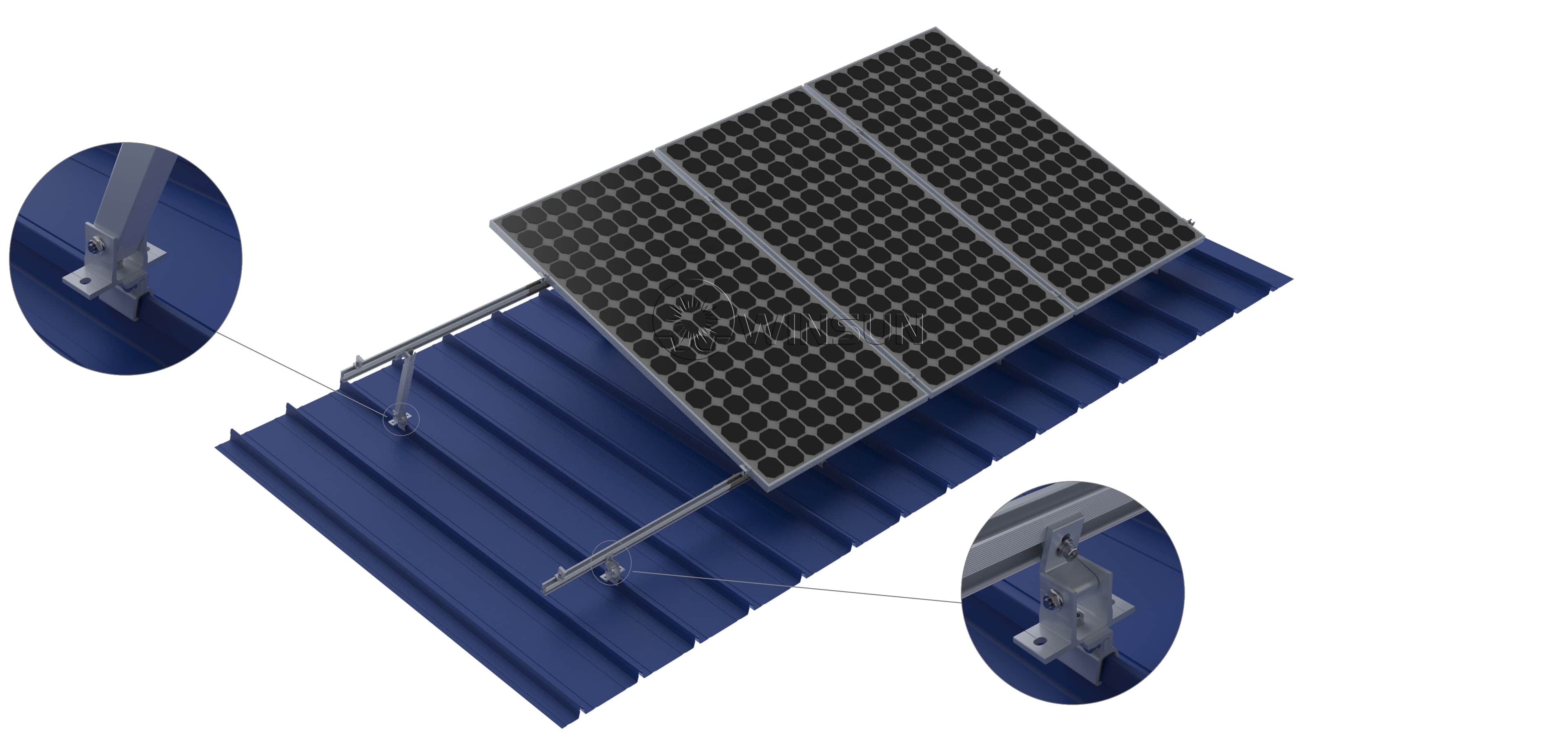

Winsun adjustable tilt solar mounting system is suitable for both metal and concrete roofs. It offers a variety of adjustable angles, such as 10°~ 15°, 15°~ 30°, and more, allowing you to choose the most suitable tilt angle based on specific installation conditions. For adjustable tilt installations on metal roofs, you can choose to directly mount the brackets on the roof using screws. Additionally, there are non-penetrating options available, which use standing seam clamps for installation.

Click to learn more about the adjustable tilt mounting system for concrete roofs.



Technical Parameter



Application Metal Roof or Concrete Roof
Material Aluminum 6005-T5 & SUS304 Stainless Steel
Wind Load 45m/s
Snow Load 1.5KN/m2
Tilt Angle 10°~ 15° / 15°~ 30° / 30°~ 60°  ( Or customized )
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

adjusatble tilt roof solar mounting system for metal roof



Components

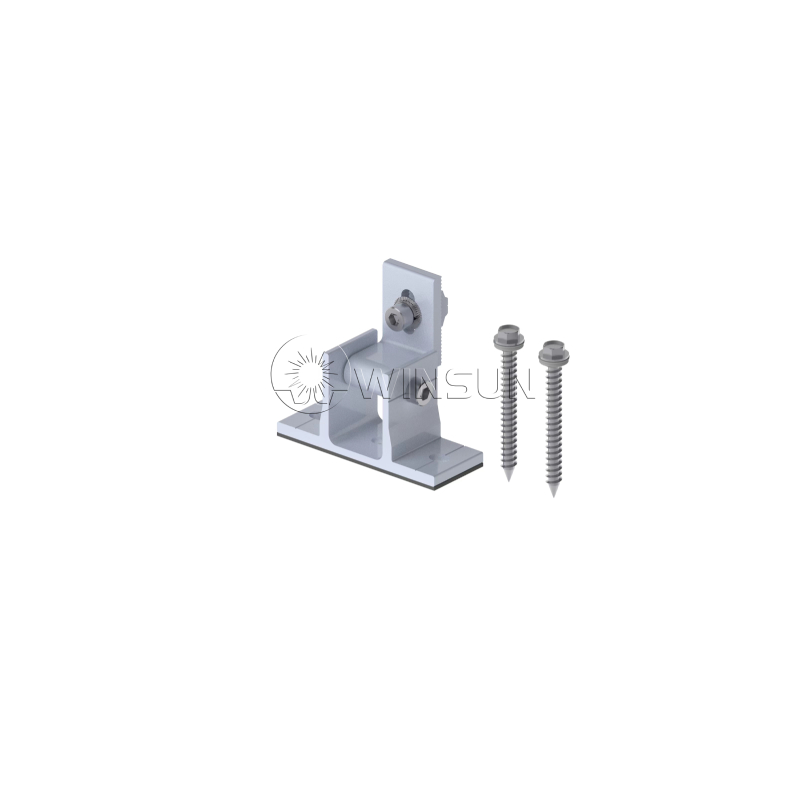

front leg for tilt solar panel roof mounts Rear leg for adjustable tilt solar panel roof mounts aluminum solar mounting profile solar mounting rail connector

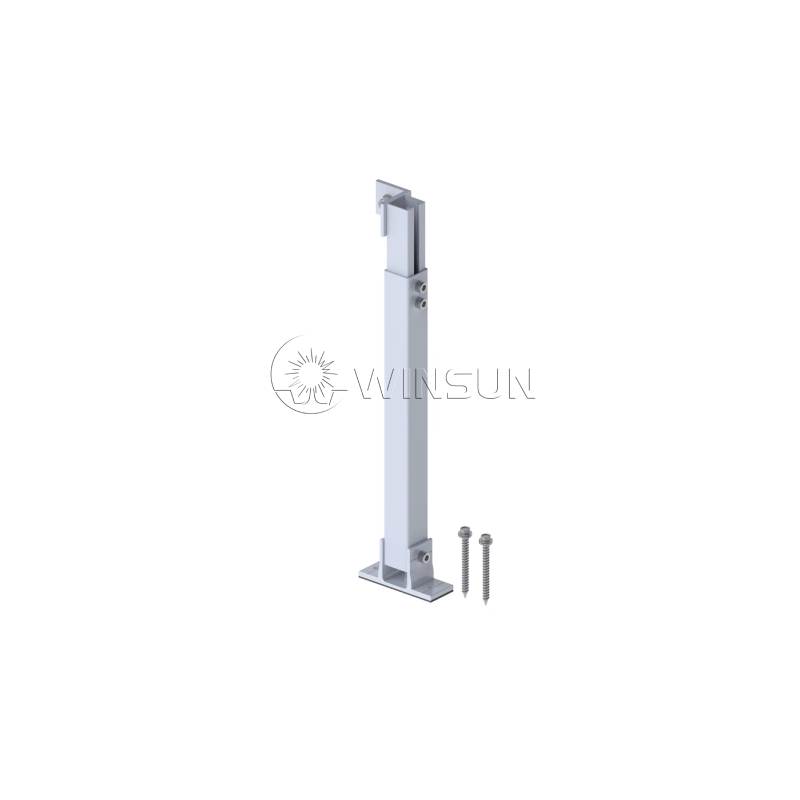

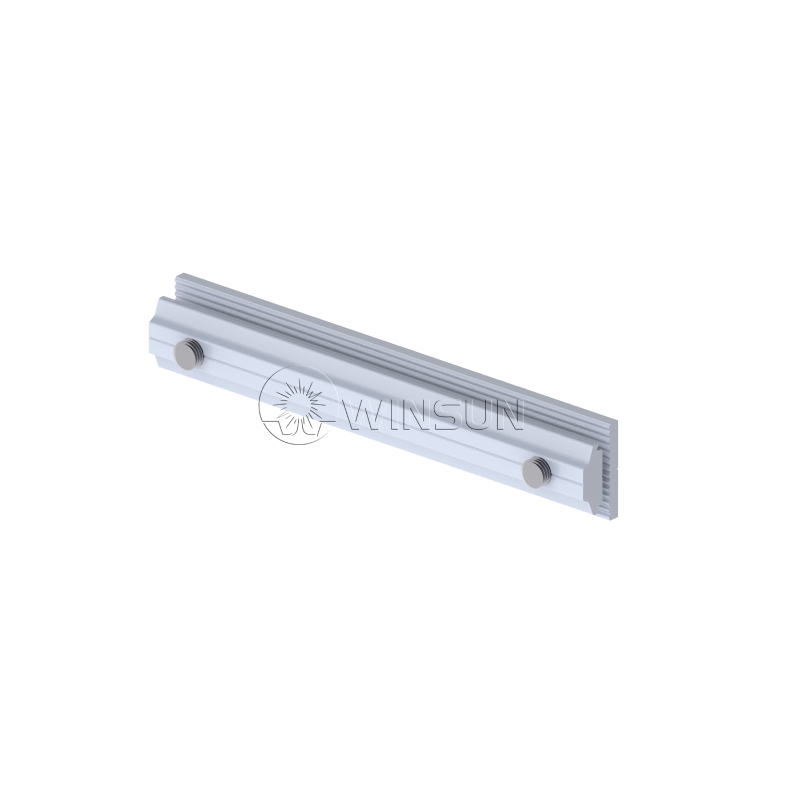

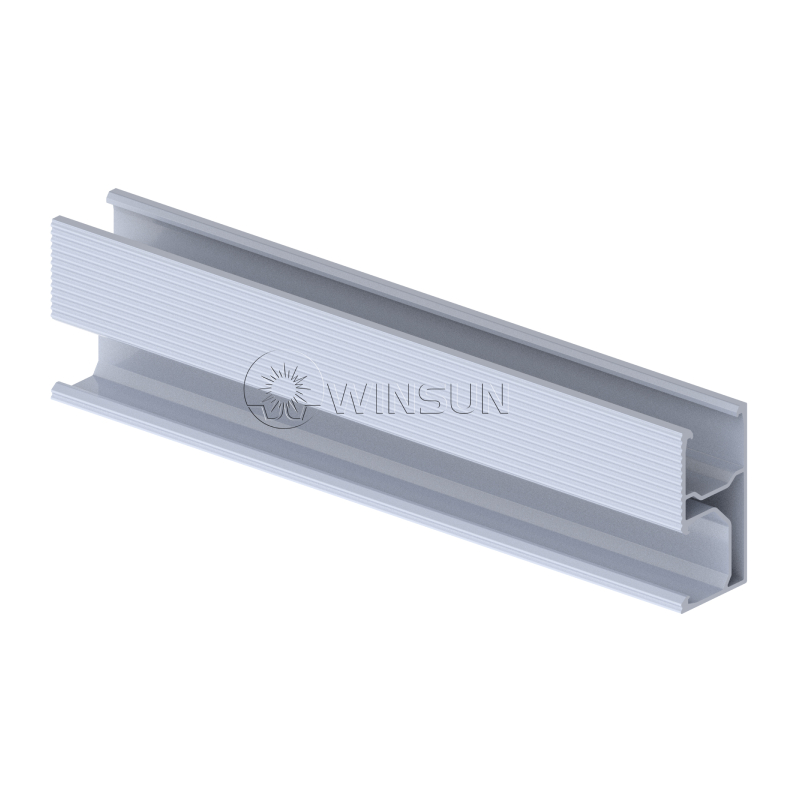

Front Leg Adjustable Rear Leg R48 Solar Mounting Rail Rail Connector

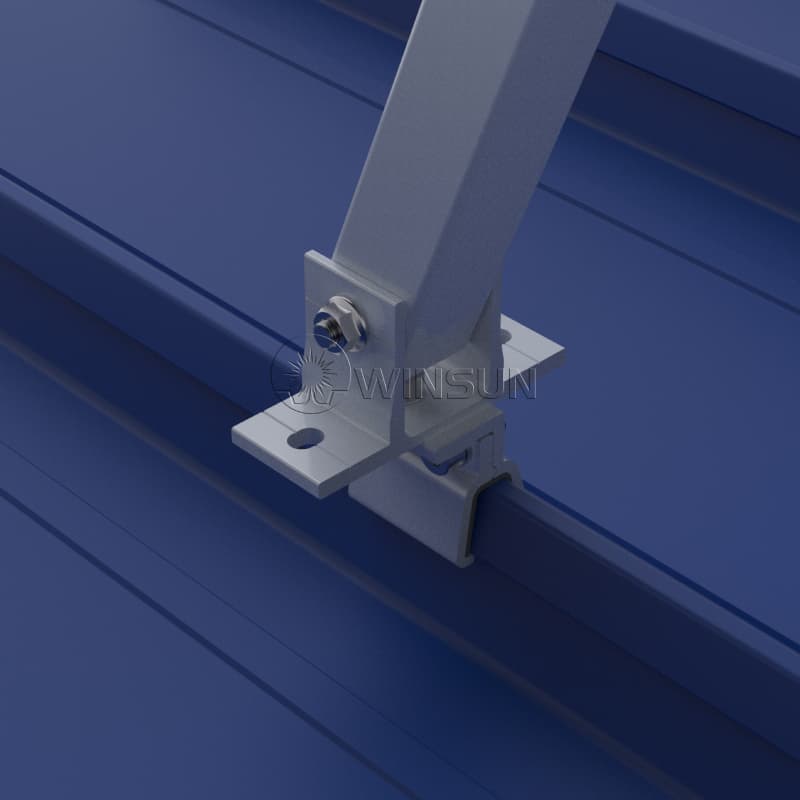

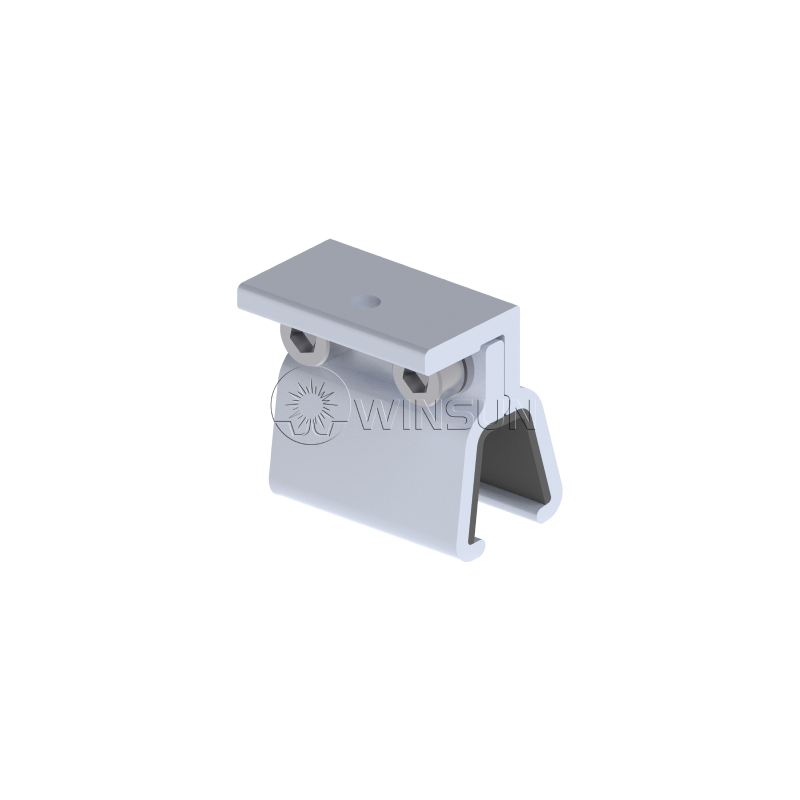

standing seam clamp for Klip-Lok 406 solar panel fastener - middle clamp solar panel fastener - end clamp

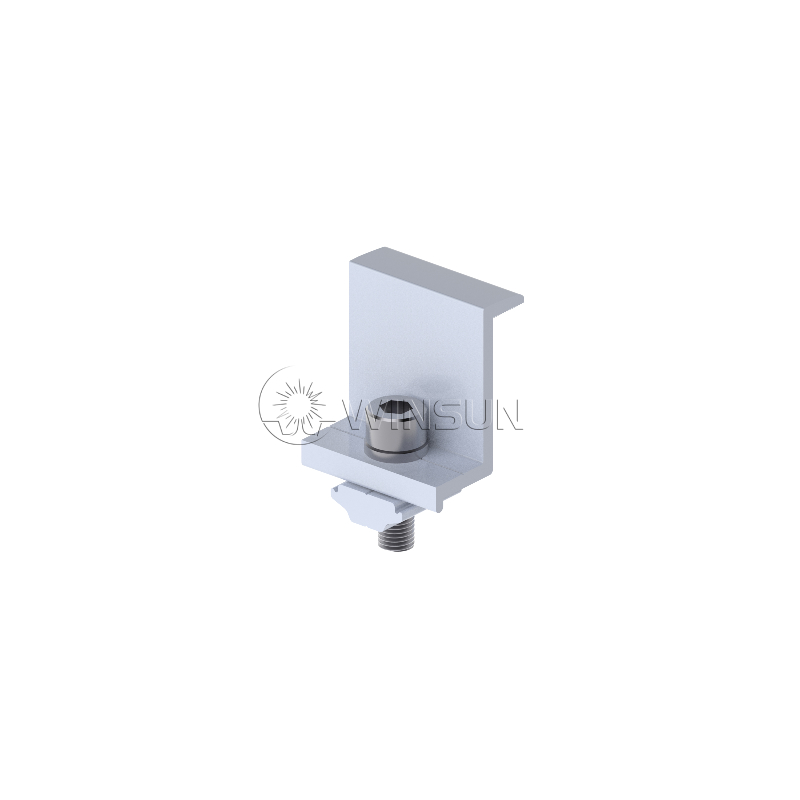

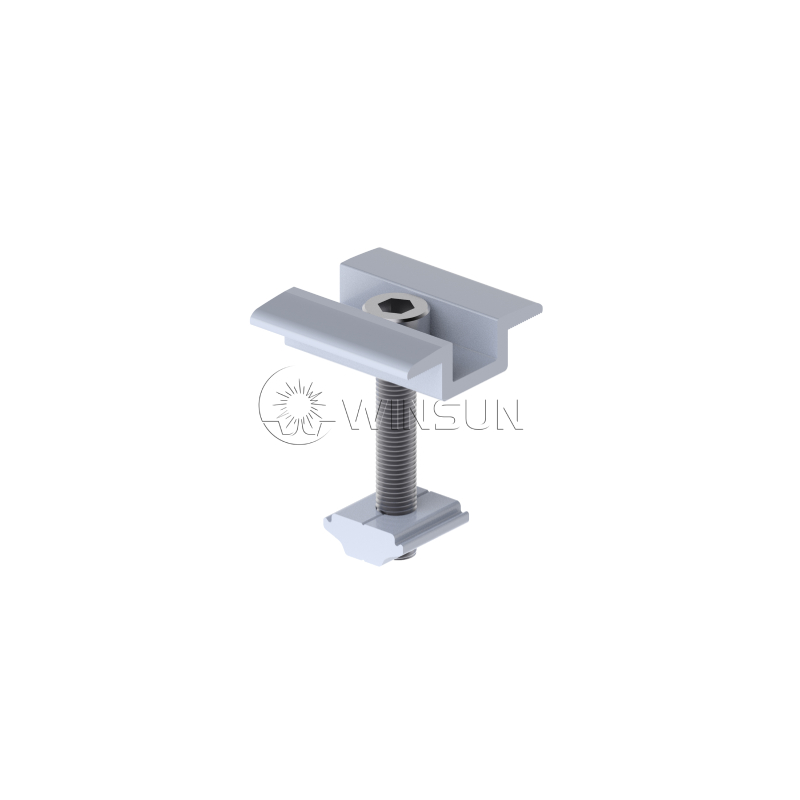

Rib Clamp For Klip-Lok 406 Middle Clamp Kit End Clamp Kit
