Metal Roof Mounting System

Home Metal Roof Mounting System

Railless Solar Panel Mounting Bracket For Metal Roof

Railless Solar Panel Mounting Bracket For Metal Roof

1.No rails needed.

2.No roof penetration required.

3.Easy and fast installation. Cost-effective.

  • Installation Site :

    Metal Roof
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction

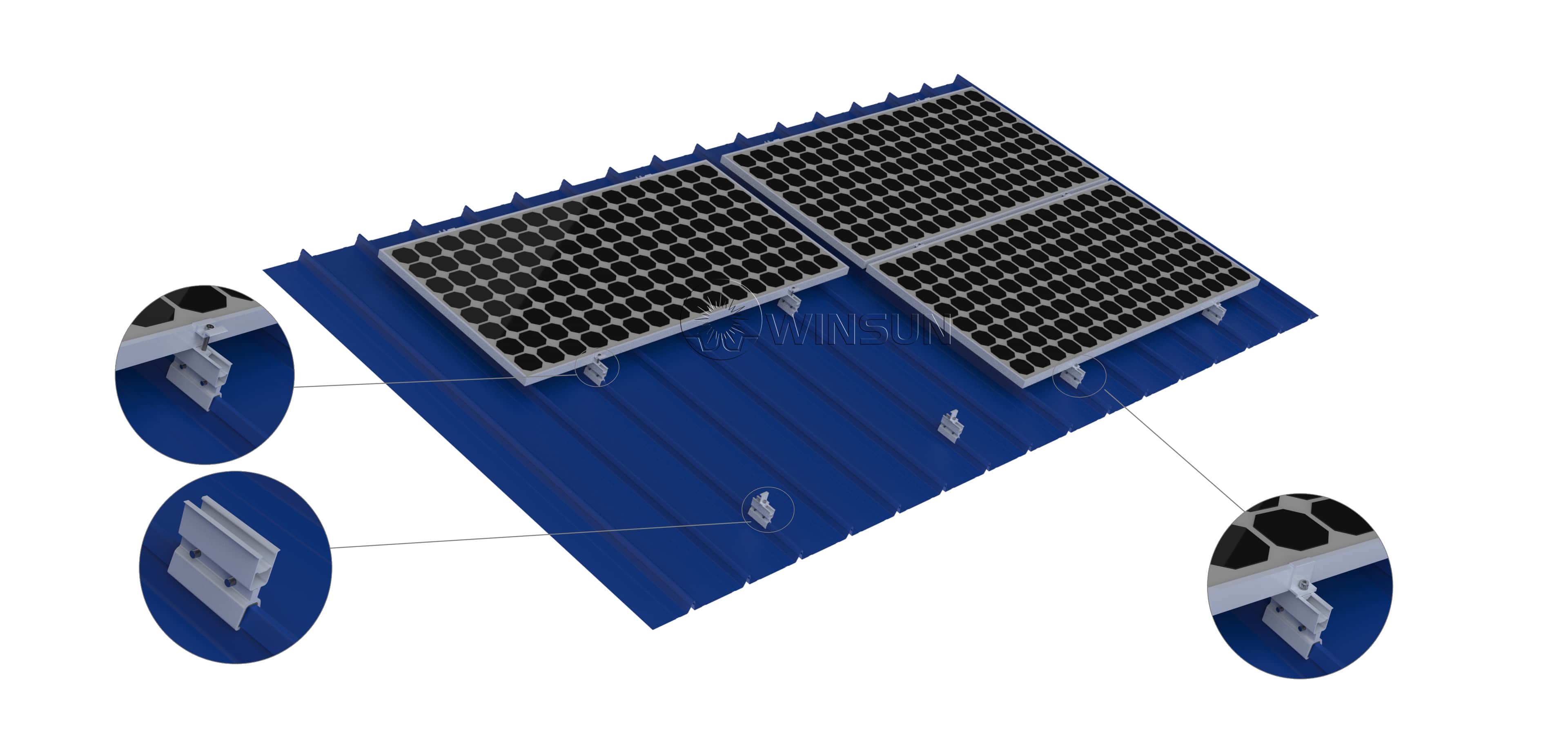

Winsun rail-less solar mounting system is designed for metal roofs. In this mounting solution, there's no need for rails, resulting in significant cost savings. Moreover, with the use of roof clamps (WS-C10) for installation, there's no need to penetrate the roof, eliminating any potential for leaks. The entire system requires just three main brackets for installing the PV modules, making the installation easier and faster. It offers a cost-effective solution for installing solar panels on metal roofs, providing not only cost savings but also convenience in installation.

Click to see more roof clamps !



Technical Parameter



Application Metal Roof
Material Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0°~60°(the same angle as roof)
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

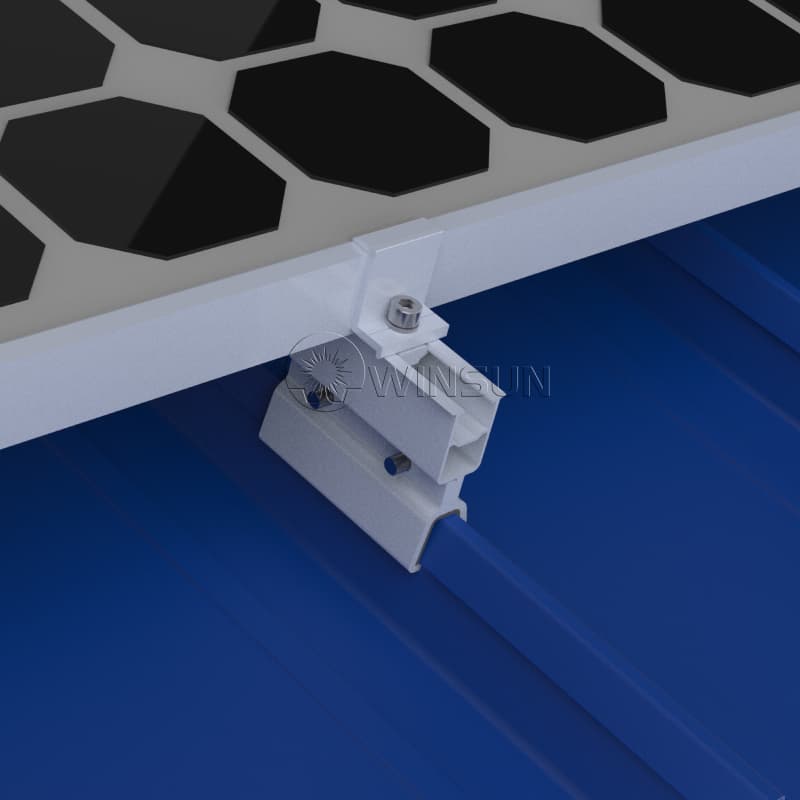

railless solar mounting system rib clamp



Components

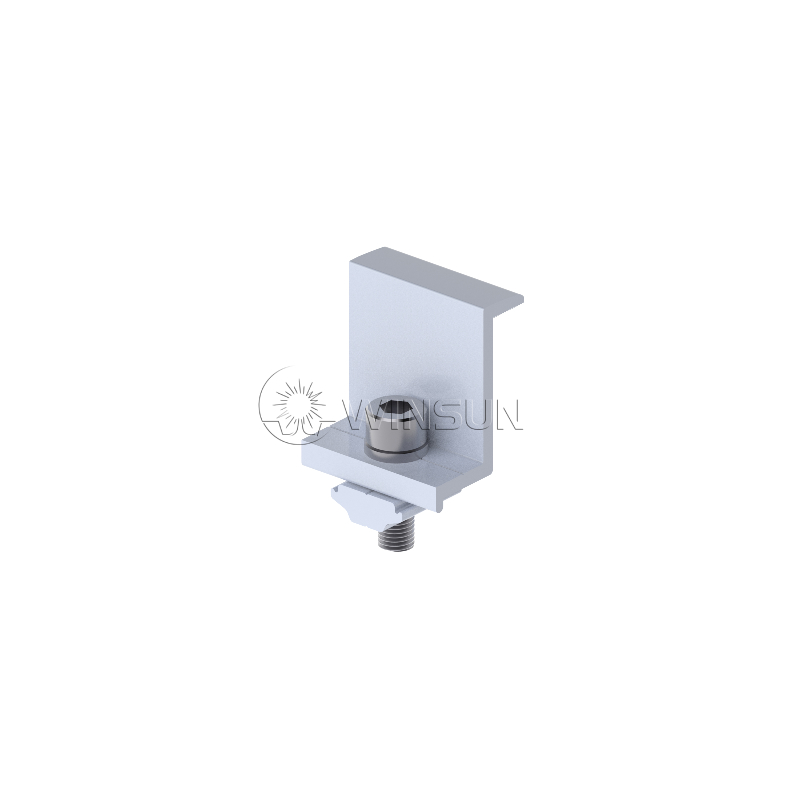

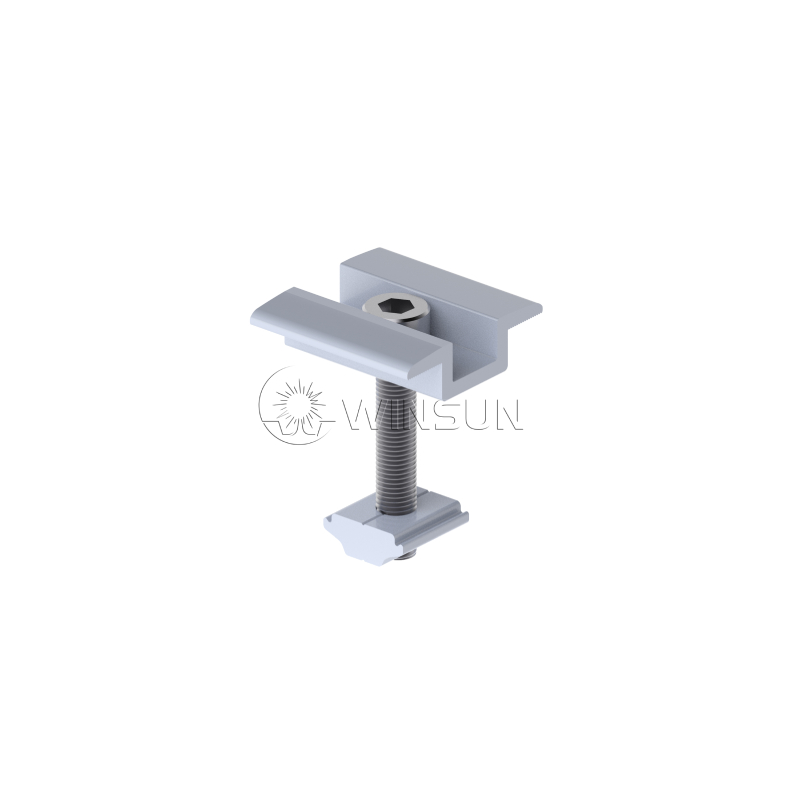

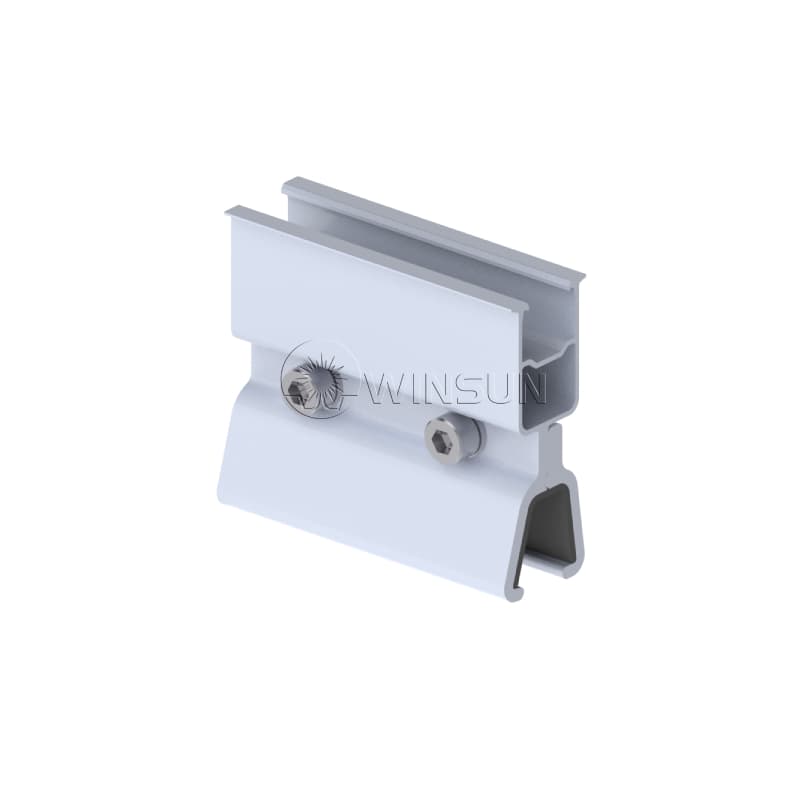

rib roof clamp PV modules fastener-inner clamp PV modules fastener-end clamp
Roof Clamp For Klip-Lok 406 Middle Clamp Kit End Clamp Kit







Get A Free Quote !
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

mini rail solar mounting system for metal roof
EU Warehouse 27mm Height Mini Rail Solar Mounting System For Corrugated Sheet Metal Roof

1.Short rail installation for cost savings.Rail length customizable. 2.Rail segments are supplied with EPDM rubber pad covered bottom side. 3.In stock in EU,fast delivery.

Read More
Trapezoidal Sheet Metal Roof Solar Mounting System
EU Warehouse Trapezoidal Sheet Metal Roof Solar Mounting Structure 60mm Height Mini Rail

1.60mm height mini rail segments are supplied with EPDM rubber pad covered bottom side. 2.Used for rapezoidal sheet metal roof, corrugated sheet metal roof and sandwich panel roof 3.EU warehouse,fast delivery!

Read More
tin roof solar mounting structure
Hanger Bolt Solar Mounting System For Tin Roof Solar Mount

1.There are multiple options for hanger bolts with various specifications. 2.Suitable for a variety of roof types, including metal roofs, tile roofs, asbestos tile roofs, and more. 3.Pre-assembled to the maximum extent before shipping.

Read More
trapezoidal sheet metal roof solar mounting barackets
U-shaped Mini Rail Solar Mounting Bracket Attaching Solar Panels To Metal Roof

1.U-shaped rails are available in two heights: 30mm and 40mm. 2.The length is 120mm, but custom lengths are also available. 3.The bottom is equipped with EPDM sealing tape.

Read More
rib clamp metal roof solar mounting system
Rib Roof Clamp PV Mounting System Non-Penetrating Solar Roof Mount

1.Non-penetrating mounting solution for sheet metal roof. 2.Simple structure,fast installation. 3.We offer a variety of clamps that are suitable for different types of roofs. Customization is also available.

Read More
railless solar mounting brackets for metal roof
Railless Solar Panel Mounting Bracket For Metal Roof

1.No rails needed. 2.No roof penetration required. 3.Easy and fast installation. Cost-effective.

Read More
asjustable tilt solar panel roof mounts non-penetrating
Adjustable Angle Tilt Solar Mounting System For Sheet Metal Roof

1.Tilted installation with adjustable angles. 2.Two installation options are available: direct fastening with screws or use with standing seam roof clamps. 3.It's suitable for both metal roofs and concrete roofs.

Read More
L-feet bracket solar mounting system
L-feet Solar Panel Mounting Bracket For Tin Roof PV Mounting

Suitable for solar panel installation on various types of metal roofs.

Read More
