All Aluminum Tile Roof Solar Mounting System

All Aluminum Tile Roof Solar Mounting System

1.All aluminum structure.

2.All products are pre-assembled to the greatest extent before delivery.

3.No MOQ,any quantity can be ordered.



  • Installation Site :

    Tile Roof
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    AL6005-T5 & SUS304
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun aluminum tile roof hook mounting system adopts aluminum tile roof hooks and aluminum solar profile.The surface is oxidized and has good corrosion resistance.

Almost all-aluminum-alloy mounting structure makes it easier to install.

Click for more tile roof hooks !



Technical Parameter



Installation Site Tile Roof
Material Aluminum 6005-T5 & SUS304 Stainless Steel
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0°~60°(the same angle as roof)
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Certificate CE
Warranty 15 Years



Details

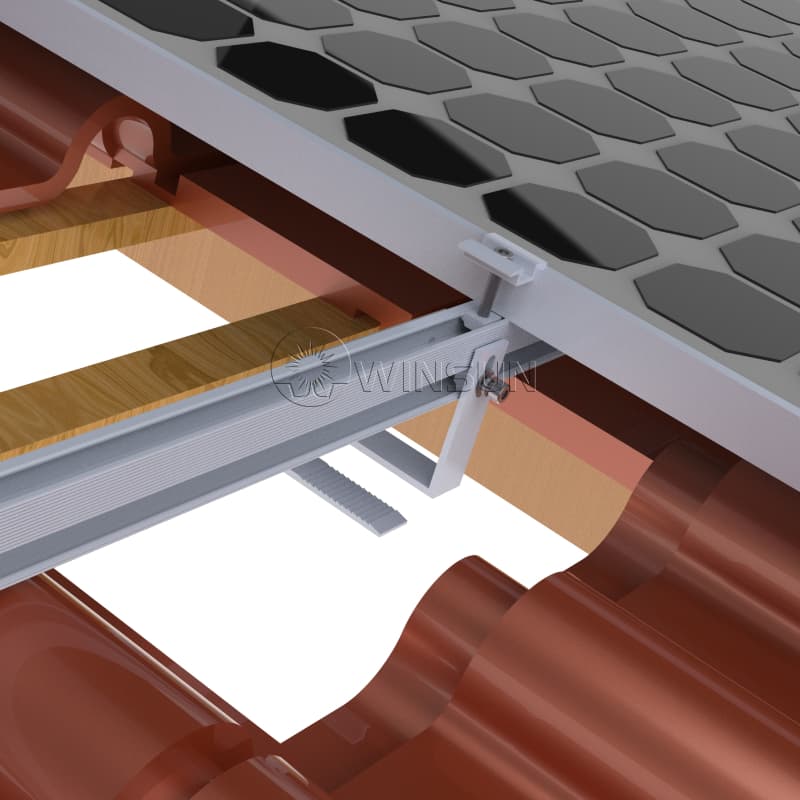

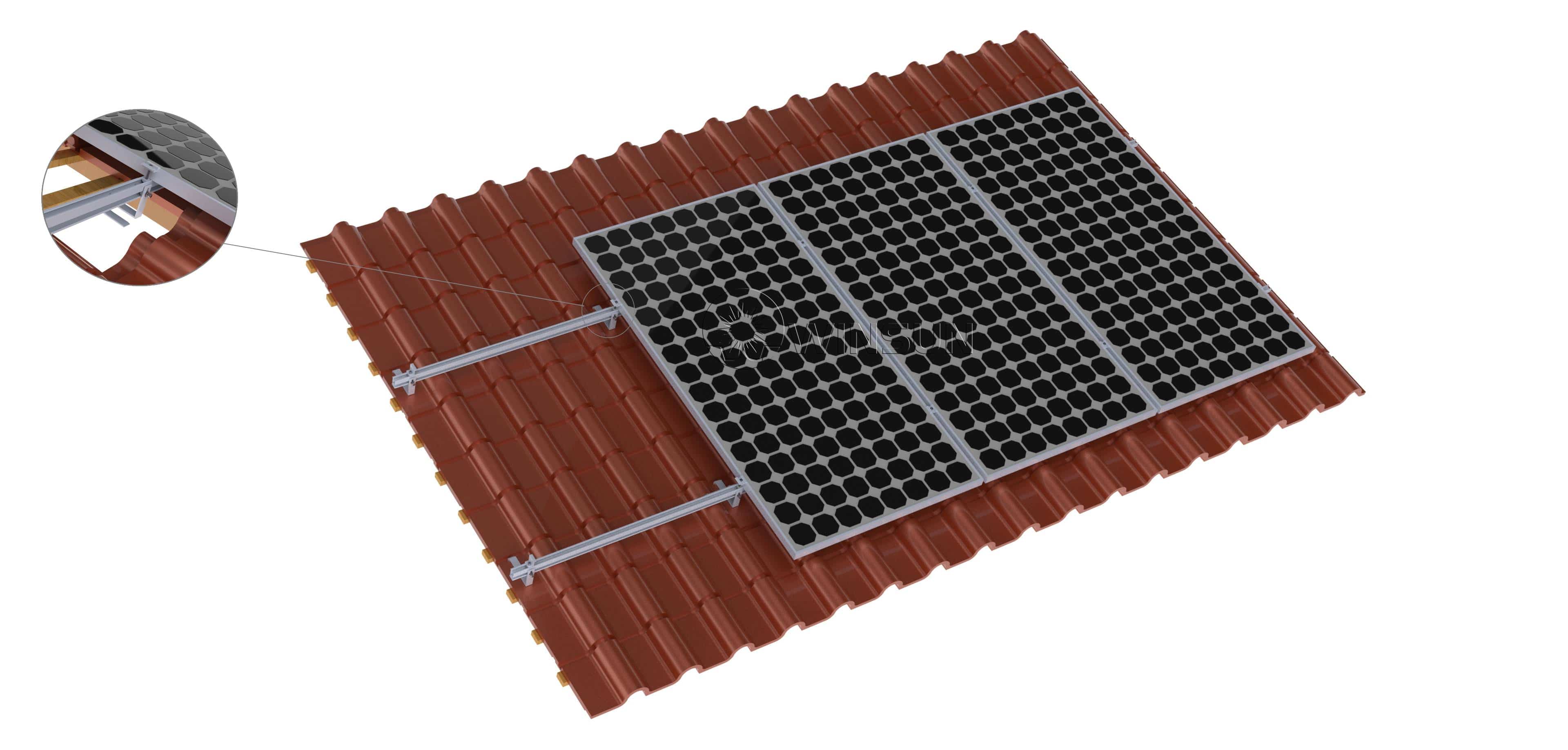

Winsun all aluminum tile roof solar mounting bracket

Components

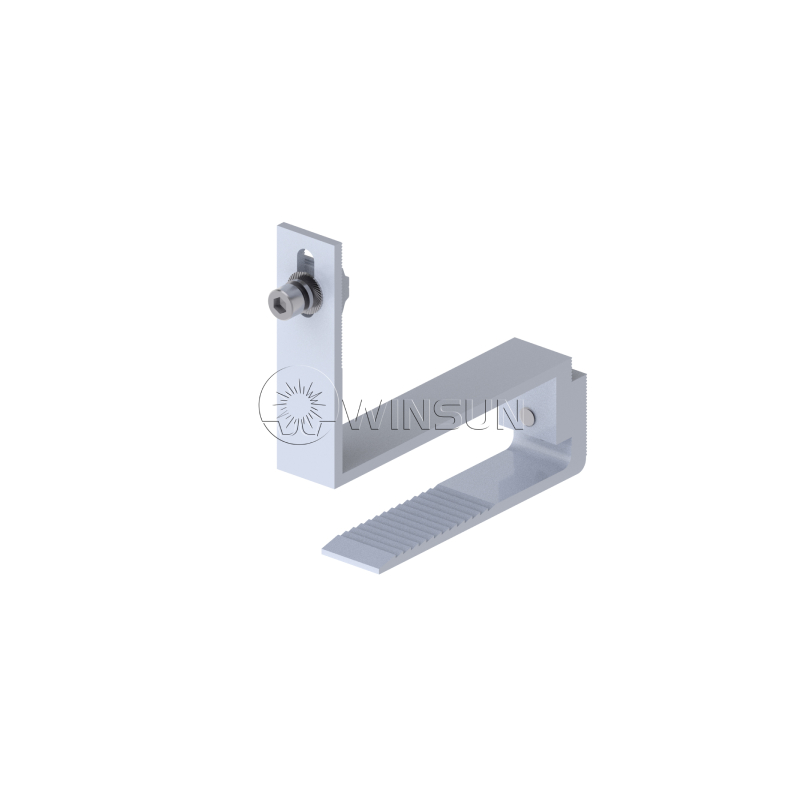

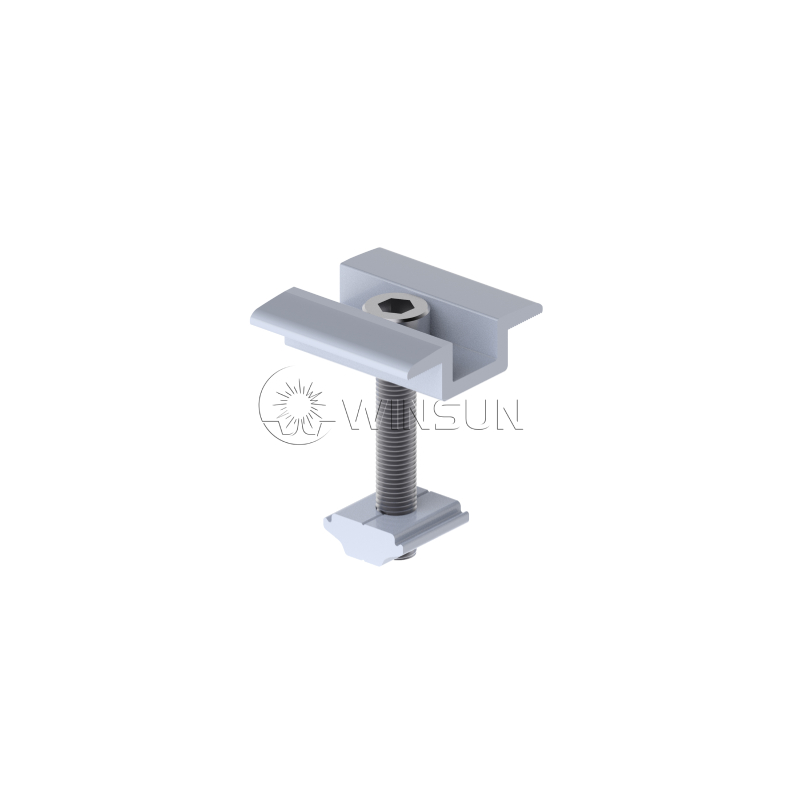

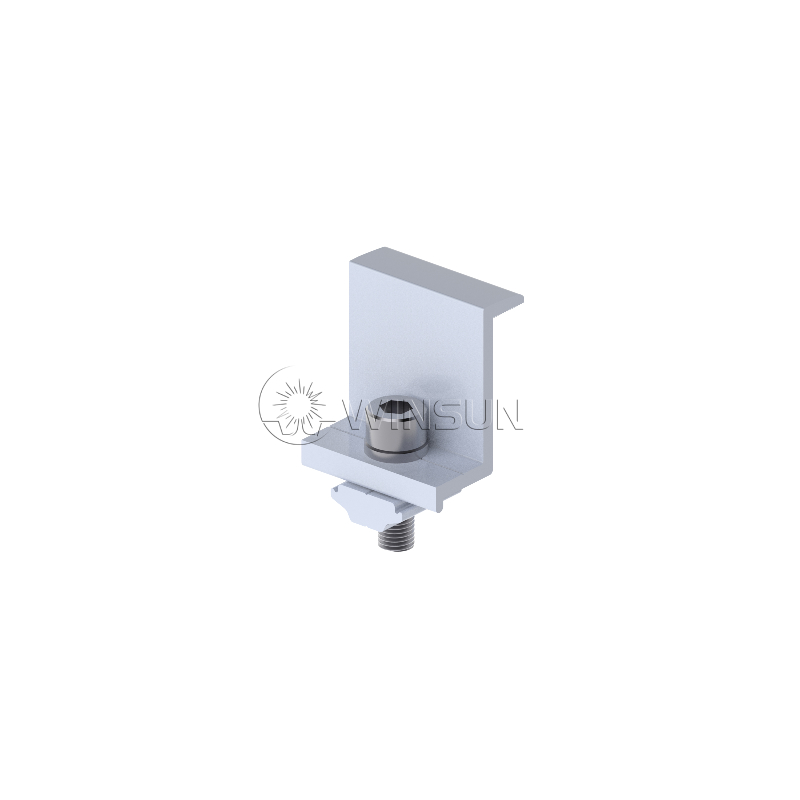

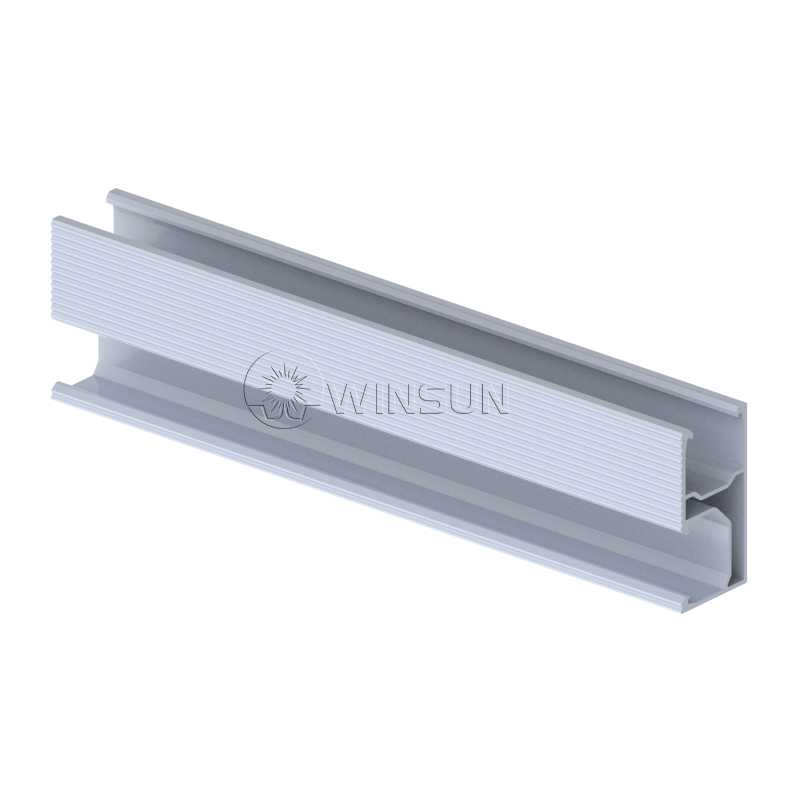

Winsun 48mm height solar mounting rail Winsun 1# aluminum tile roof hook Winsun middle clamp kit for PV module fastening Winsun end clamp kit for PV module fastening
R48 Rail 1# Tile Roof Hook Middle Clamp Kit End Clamp Kit
