Solar Tile Roof Mounting System For Both Horizontal And Vertical Installations
1.Adjustable tile roof hook, which can be installed horizontally and vertically.
2.Universal clamp which can be used as middle clampand end clamp.
3.All-aluminum structure, pre-installed to the maximum extent before delivery.
Installation Site :
Tile RoofWind Load :
60m/sSnow Load :
2KN/m2Material :
AL6005-T5 & SUS304Warranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

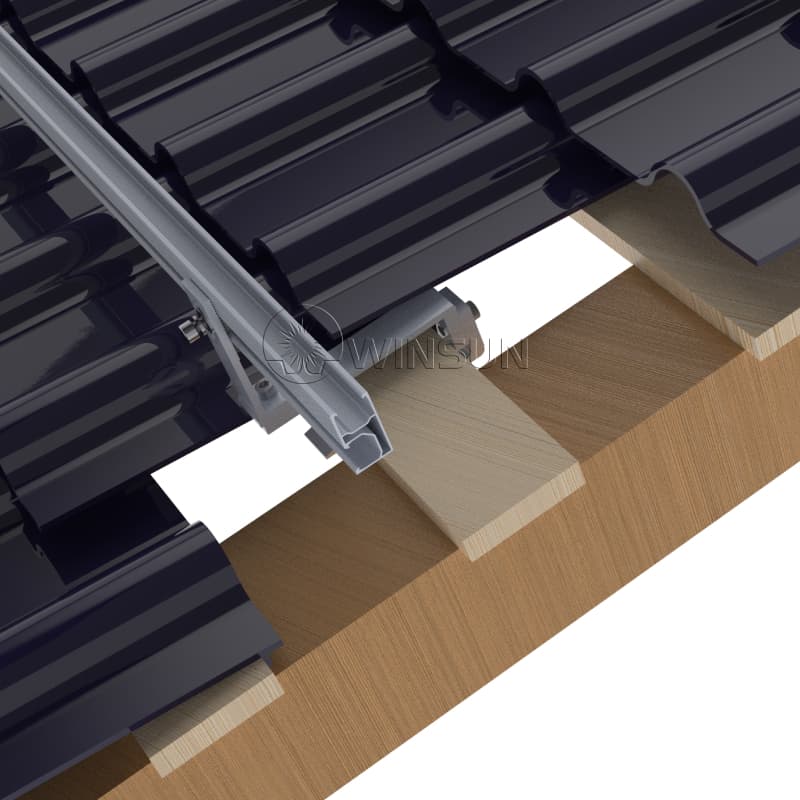

The Winsun WS-TRH-A03 tile roof hook solar mounting structure enables easy installation of solar panels in both portrait and landscape orientations. Included universal clamps (WS-UC) serve dual purposes, mid and end clamping, and are adaptable to PV modules ranging from 30mm to 40mm in thickness. Their push-in design simplifies and accelerates the installation process.
Technical Parameter
| Installation Site | Tile Roof |
| Material | Aluminum 6005-T5 & SUS304 Stainless Steel |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60°(the same angle as roof) |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Certificate | CE |
| Warranty | 15 Years |
Details

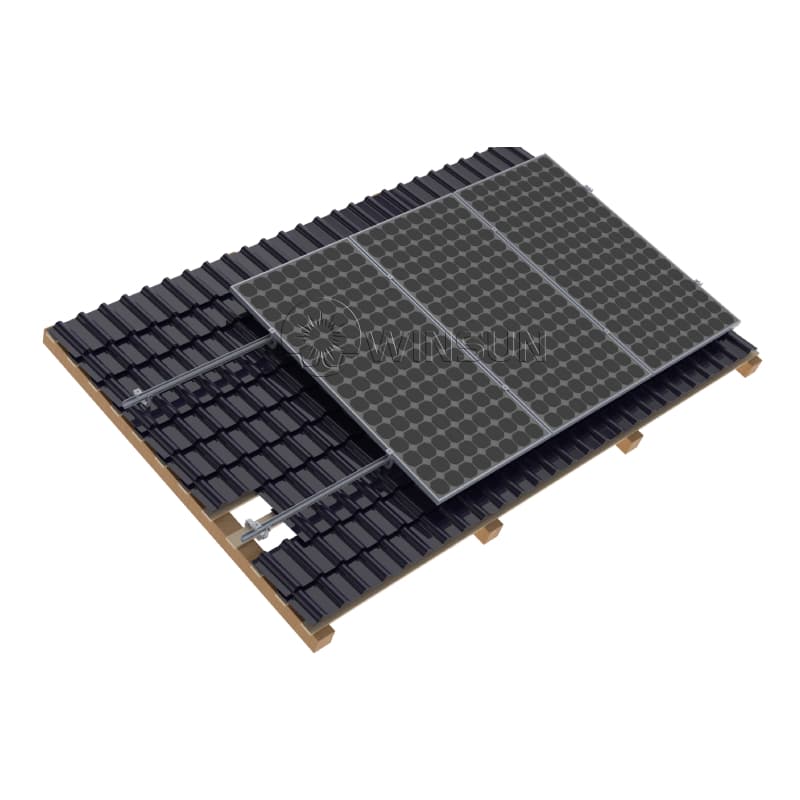

| Portrait Set-up |
 |
| Landscape Set-up |
 |
Components
 |
 |
 |
 |

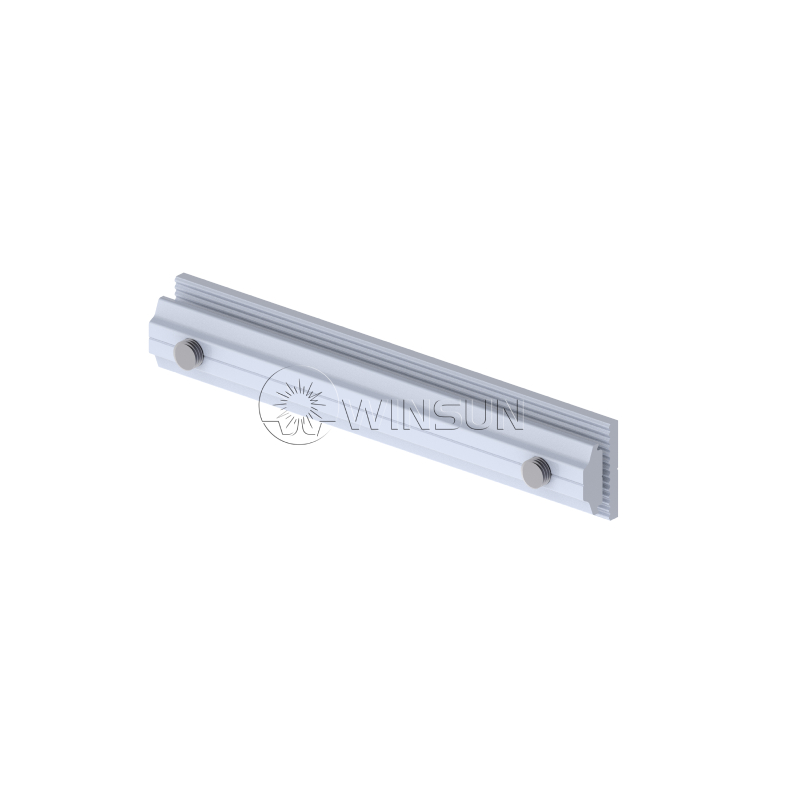

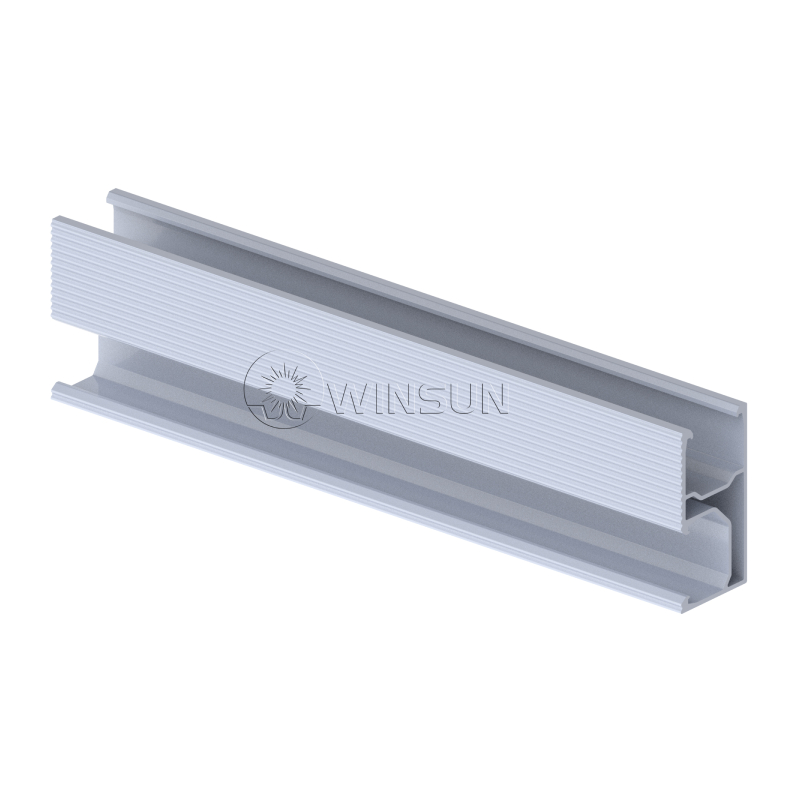

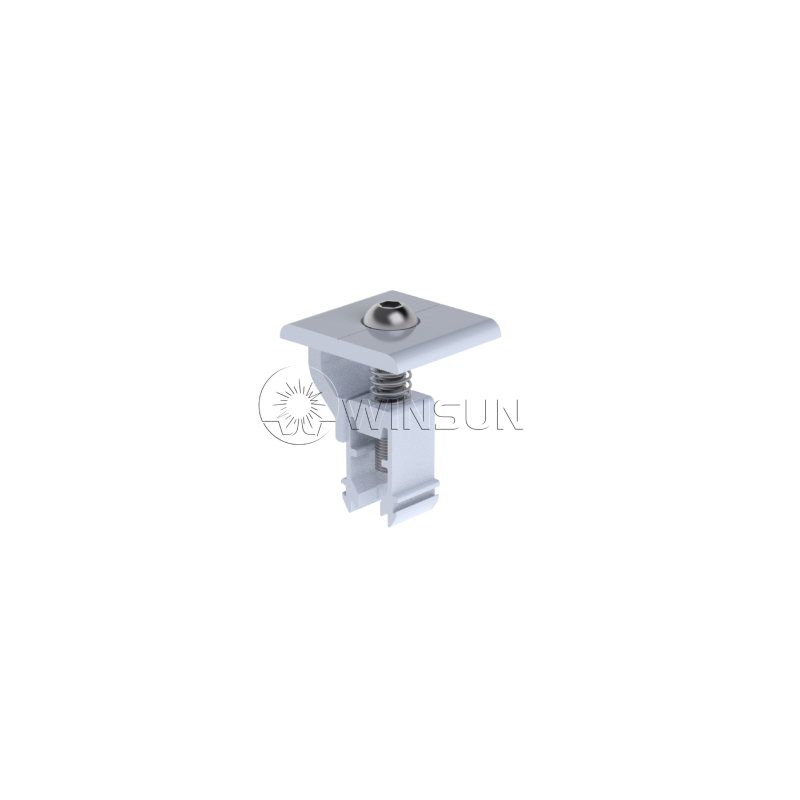

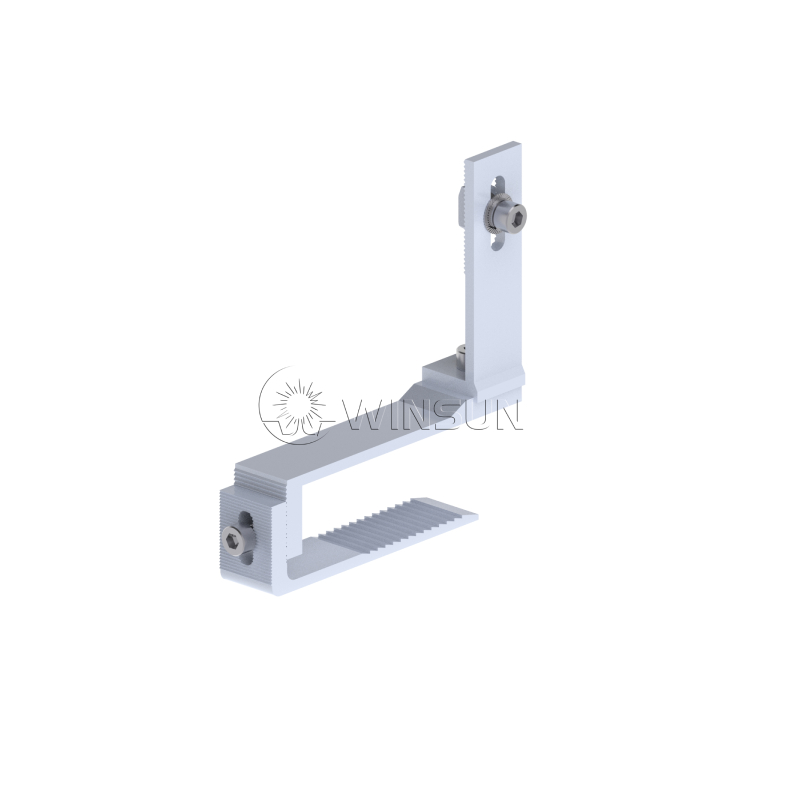

| R48 Rail | 3# Aluminum Tile Roof Hook | Rail Connector | Universal Clamp Kit |
1.Aluminum solar mounting rail,stainless steel tile roof hook.Premium material,long service life. 2.Multiple types of hooks are available for selection. 3.Simple structure,fast installation.
Read More
1.All aluminum structure. 2.All products are pre-assembled to the greatest extent before delivery. 3.No MOQ,any quantity can be ordered.
Read More
1.Aluminum tile roof hook with adjustable base plate and bracket. 2.All aluminum components are anodized for improved aesthetics and superior corrosion resistance. 3.No MOQ,any quantity can be ordered.
Read More
1.Stainless steel tile roof hook with adjustable base plate and bracket. 2.Quick-mounting clamp with a push-in design for faster and easier installation. 3.Clamp ajustable, suitable for fastening solar modules from 30mm to 40mm.
Read More
1.Adjustable tile roof hook, which can be installed horizontally and vertically. 2.Universal clamp which can be used as middle clampand end clamp. 3.All-aluminum structure, pre-installed to the maximum extent before delivery.
Read More
