Aluminum Solar Carport with Optional Drainage System | Structural Waterproof Design
1.All-aluminum structure with integrated waterproof design — easy to install, corrosion-resistant, and visually sleek
2.Optional drainage system for efficient rainwater control.
3.Custom colours available — select from the RAL colour chart.
Installation Site :
Open FiledWind Load :
60m/sSnow Load :
2KN/m2Material :
Aluminum 6005-T5 & SUS304 Stainless SteelWarranty :
15 YearsColor :
Black Or SilverShipping Port :
Xiamen Port,ChinaSystem Instruction
Winsun aluminum solar carport with optional drainage system is a structural waterproof solution that combines clean aesthetics with efficient rainwater management.

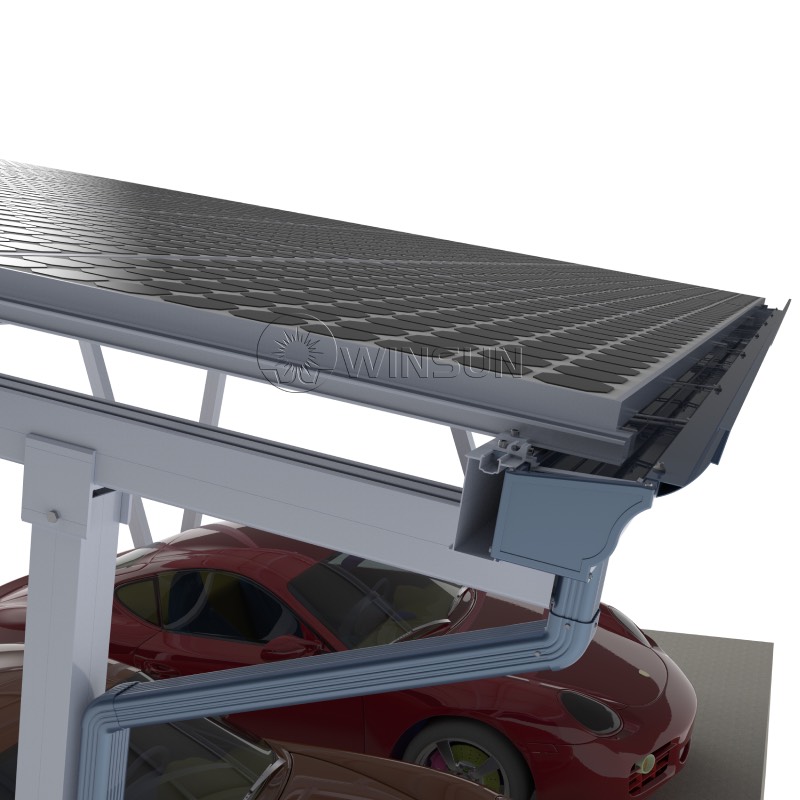

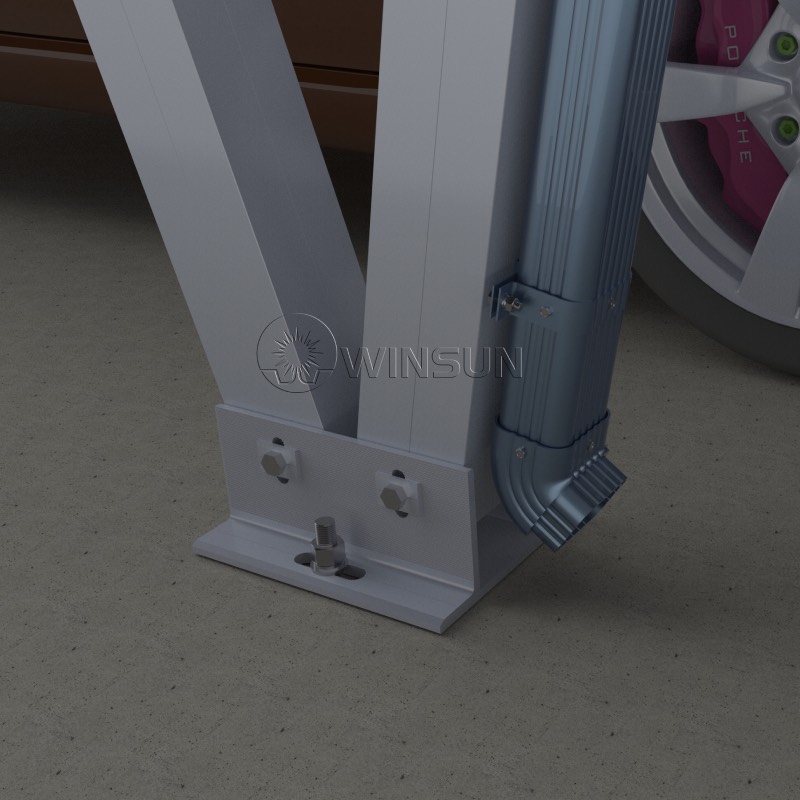

The carport’s integrated waterproof design allows solar panels to function directly as the roof, removing the need for additional coverings and achieving a sleek, modern look. The optional gutter system is seamlessly integrated to collect and channel rainwater, reducing splashing and improving overall site cleanliness and safety.
Made from corrosion-resistant aluminum alloy and pre-assembled for faster installation, this carport is ideal for both residential and commercial solar projects.
Technical Parameter
| Installation Site | Open Filed |
| Material | Aluminum 6005-T5 & SUS304 Stainless Steel |
| Color | Silver,Black or other RAL color |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~30° |
| PV Modules | Framed |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Warranty | 15 Years |
Details

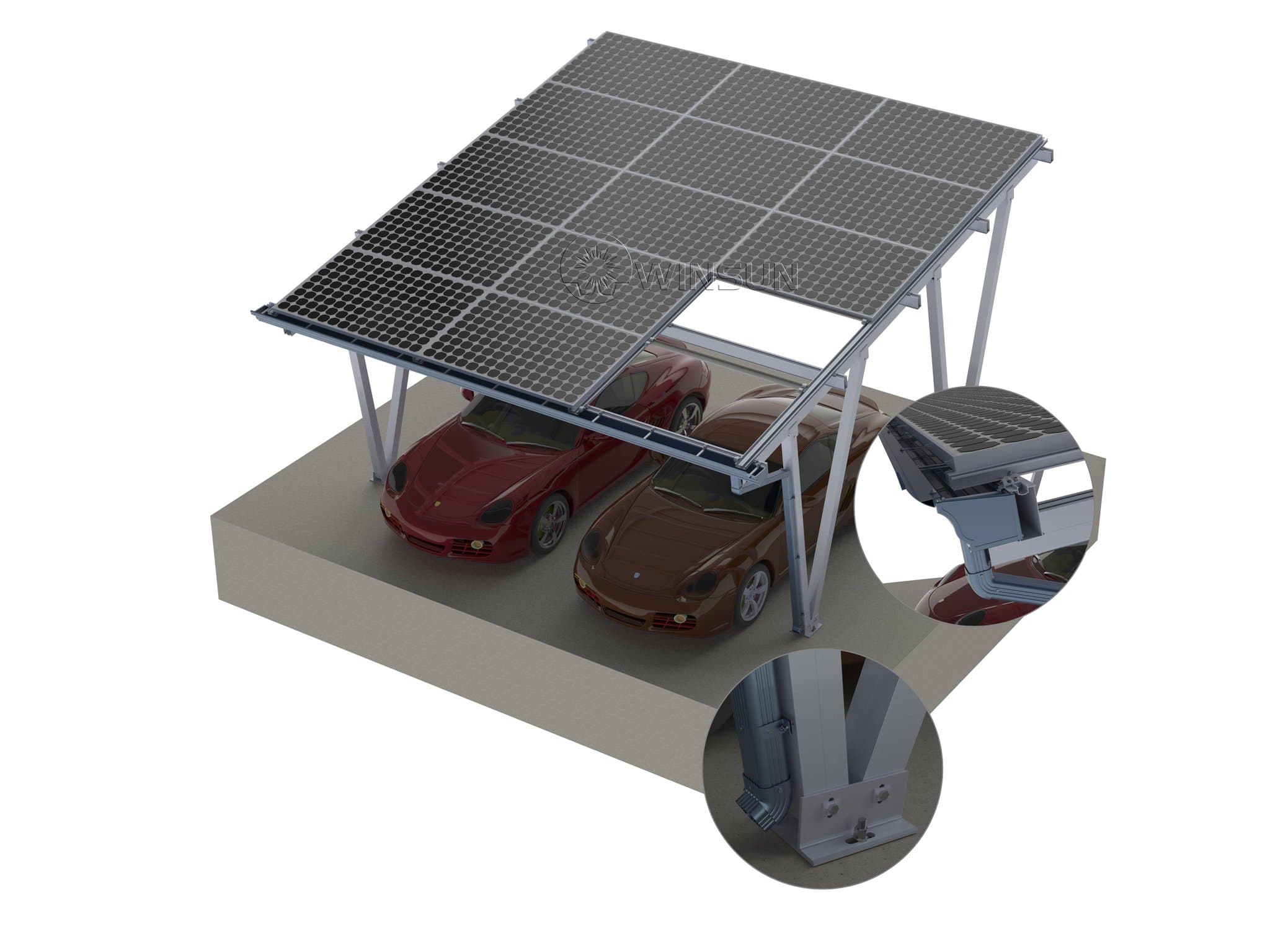

2-Car Waterproof Carport System With Drainage System
1.Structural waterproof design with solar panels serving as the top cover, enhancing the overall aesthetics. 2.Aluminum structure, and pre-assembly to the maximum extent before delivery to make installation easier and faster. 3.Custom designs available to meet your specific needs.
Read More
1.New design with significantly increased load capacity; snow resistance up to 3.5kn/m2. 2.Structural waterproof design with solar panels serving as the top cover, enhancing the overall aesthetics. 3.Aluminum structure, and pre-assembly to the maximum extent before delivery to make installation easier and faster. 4.ODM & OEM available.Free design, can provide drawings and structural calculation reports.
Read More
1.Galvanized Steel Support Structure: Ensures durability and weather resistance. 2.Aluminum Alloy Waterproof Top: Facilitates quick and easy installation. 3.Versatile Applications: Suitable for a wide range of vehicle protection needs. 4.Durable Construction: Built to withstand diverse weather conditions and ensure long-term reliability. 5.Energy Efficiency: Harnesses solar energy to reduce environmental impact and energy costs.
Read More
1.BIPV waterproof design for integrated solar power and weather protection. 2.Steel structure, with both the support and waterproof components made of steel for strength and stability. 3.Simple assembly for quick and easy installation.
Read More
1.Galvanized Steel Support Structure: Provides robustness and longevity. 2.Aluminum Waterproof Top: Facilitates quick and easy installation, offering excellent water resistance. 3.Long Edge Installation: Versatile design that accommodates various types of solar panels.
Read More
1.Suitable for both commercial and residential use. 2.Carport height, parking space layout, installation angle, and more can all be customized to create your exclusive carport. 3.Aluminum structure, pre-assembled to the maximum extent before shipping, making installation easier and faster.
Read More
Winsun single-pole solar carport is constructed from high-strength carbon steel with a hot-dip galvanized surface treatment, providing enhanced structural stability and excellent corrosion resistance.
Read More
Winsun steel solar carport is simple in design and stable in structure. Single poles make parking space unrestricted.
Read More
