Mini Rail for Solar Panel Installation on Sheet Metal Roof | PV Mounting Bracket
1.Suitable for trapezoidal, corrugated, and sandwich panel metal roofs
2.Pre-equipped with EPDM rubber strip to enhance waterproof performance
3.Easy to install — compatible with push-in clamps for enhanced efficiency
Item No :
WS-R27-MINIMaterial :
AL6005-T5,SUS 304&EPDMColor :
Silver or BlackWarranty :
15 YearsShipping Port :

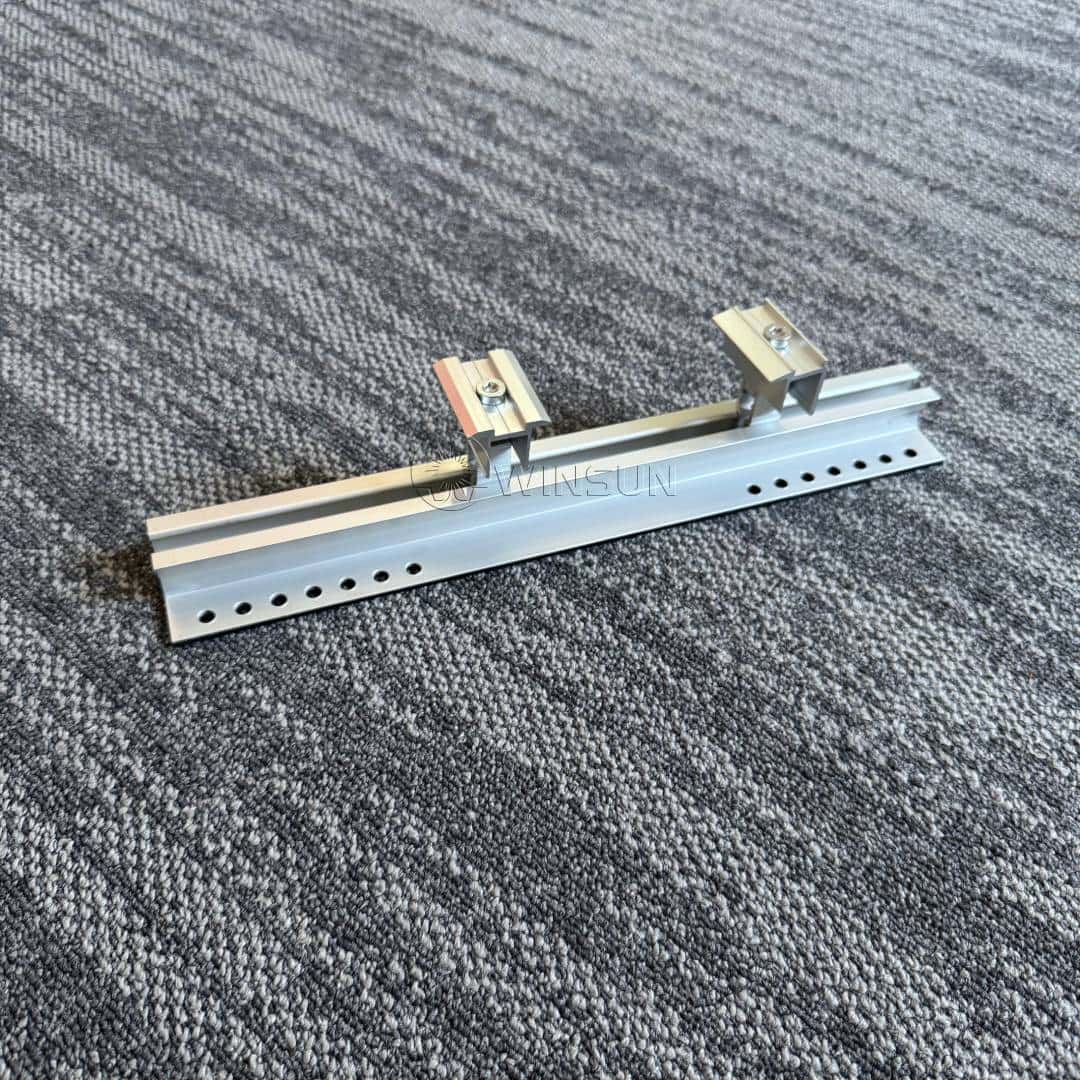

Xiamen Port,ChinaThis mini rail is specially designed for solar panel installation on metal roofs. Compared to traditional long rail systems, it significantly reduces both installation time and material cost.
It is compatible with trapezoidal sheet metal roofs, corrugated metal roofs, and sandwich panel roofs. Each rail segment is pre-applied with EPDM sealing tape on the underside for enhanced waterproofing.

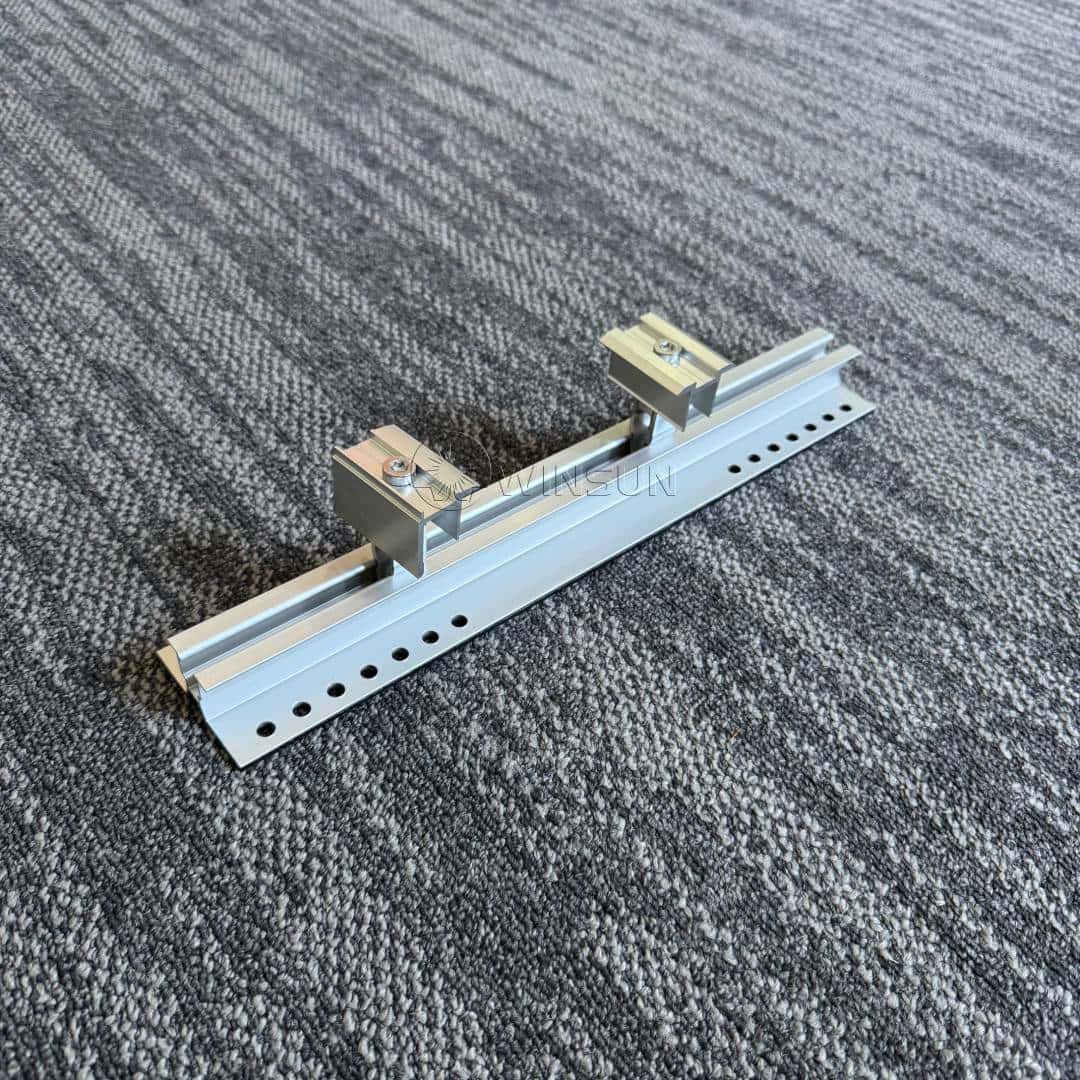

The mini rail works seamlessly with our push-in solar panel clamps, helping to further streamline the installation process.
Standard length is 385 mm, with customized lengths available upon request.
| Item NO. | WS-R27-MINI |
| Material | Aluminum 6005-T5,SUS 304 & EPDM |
| Surface | Anodized |
| Color | Silver or Black |
| Length | 385mm or Customized |

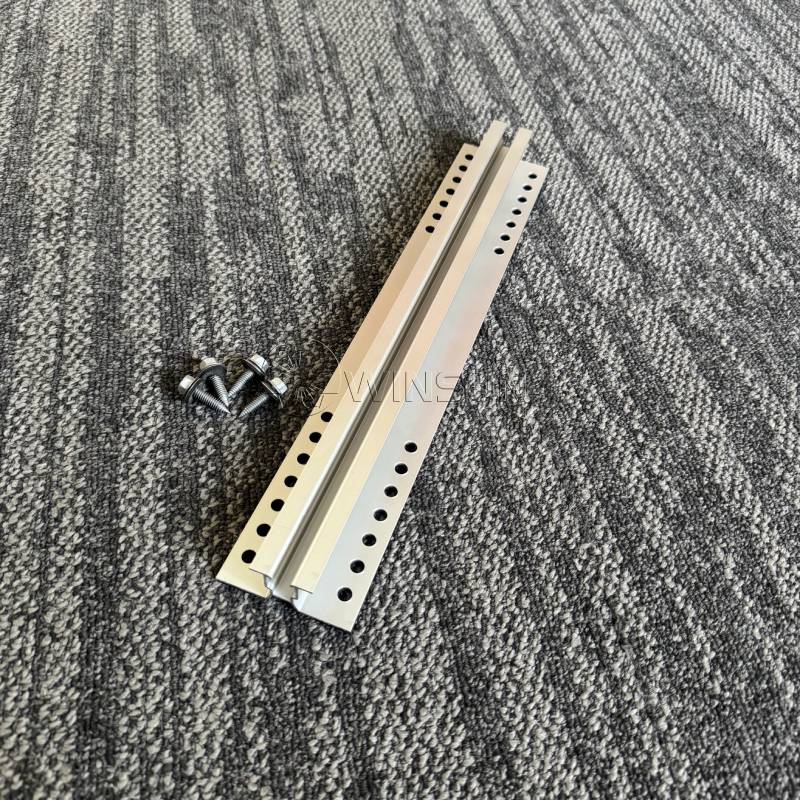

| BOM | 385mm R27 rail*1,Self-tapping screw*4,Rubber pad*2 |
| Warranty | 15 Years |
 |
 |
1.Stock available in EU warehouse, quick shipping possible. 2.Suitable for trapezoidal sheet metal roof, corrugated sheet metal roof, sandwich panel roof, etc. 3.Rail segments are supplied with EPDM sealing tape covered bottom side.
