Adjustable Tilt Solar Mounting System for Curved Metal Roofs | PV Mounting System for Arched Roof Applications

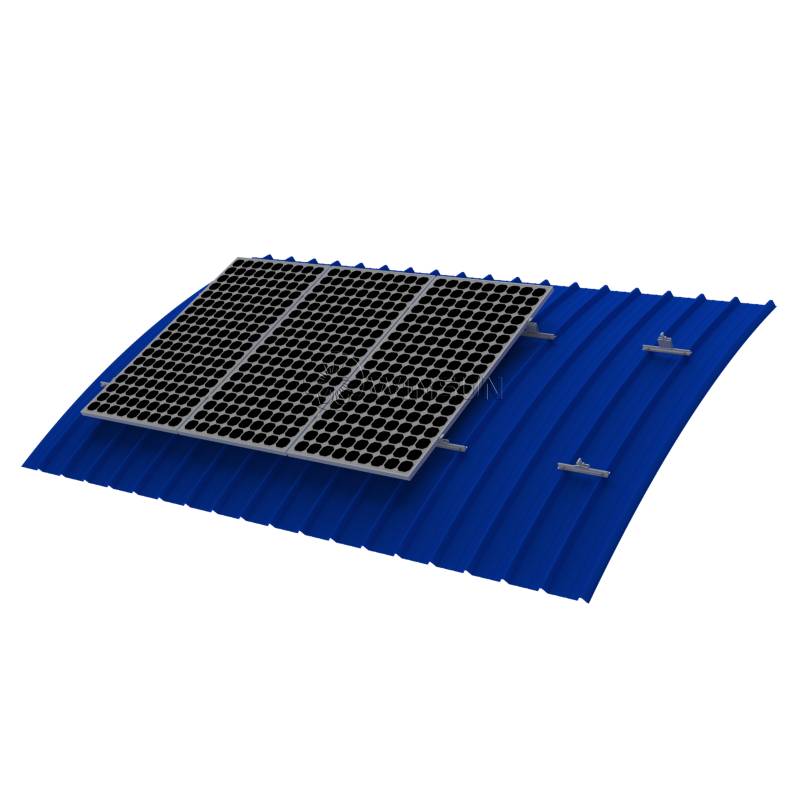

Winsun's Adjustable Solar Mounting System for Curved Metal Roofs offers a flexible and efficient solution for installing PV modules on arched, domed, or curved roof structures. This system is specially engineered for curved roofs where regular PV mounting systems fall short.

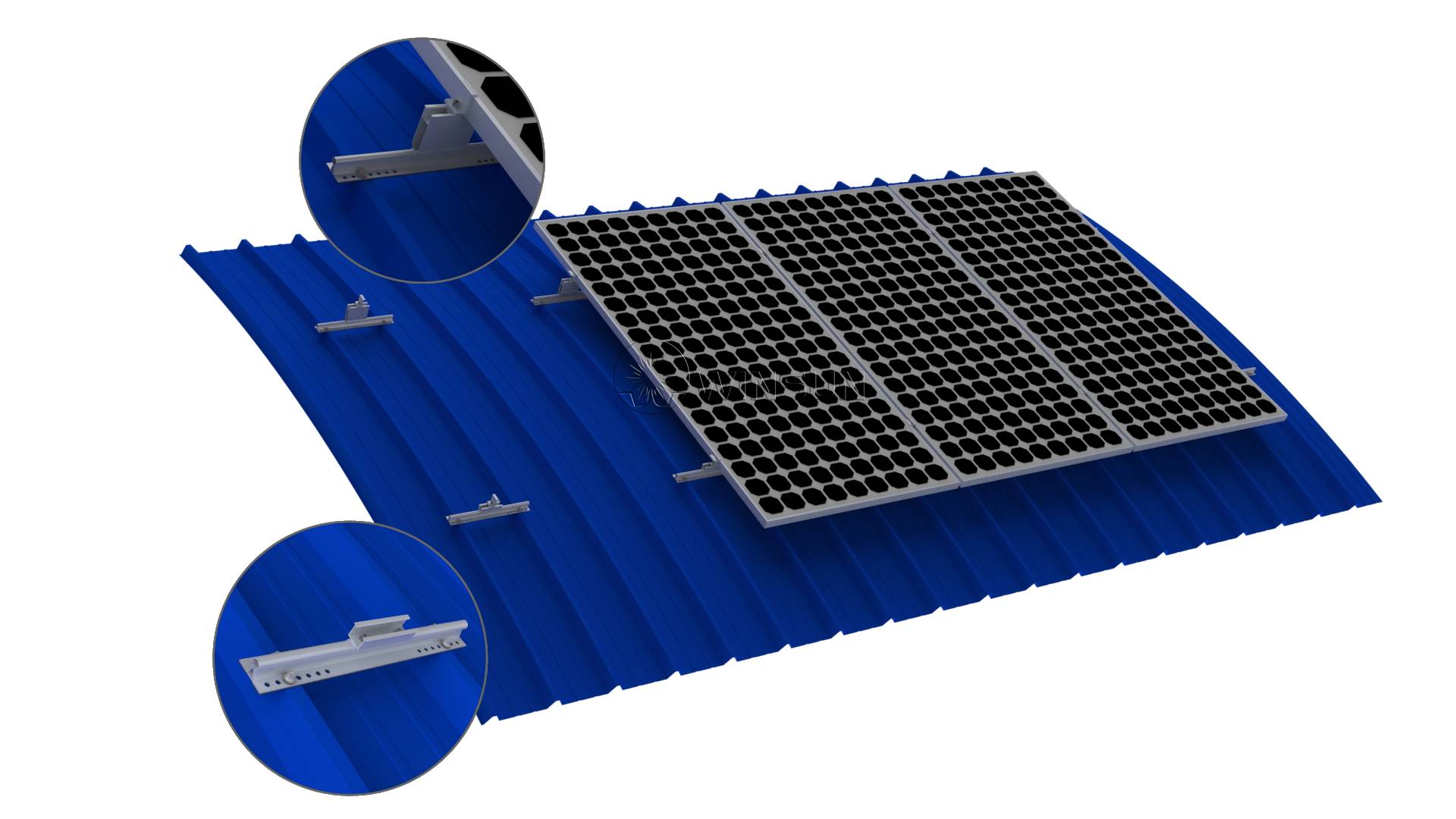

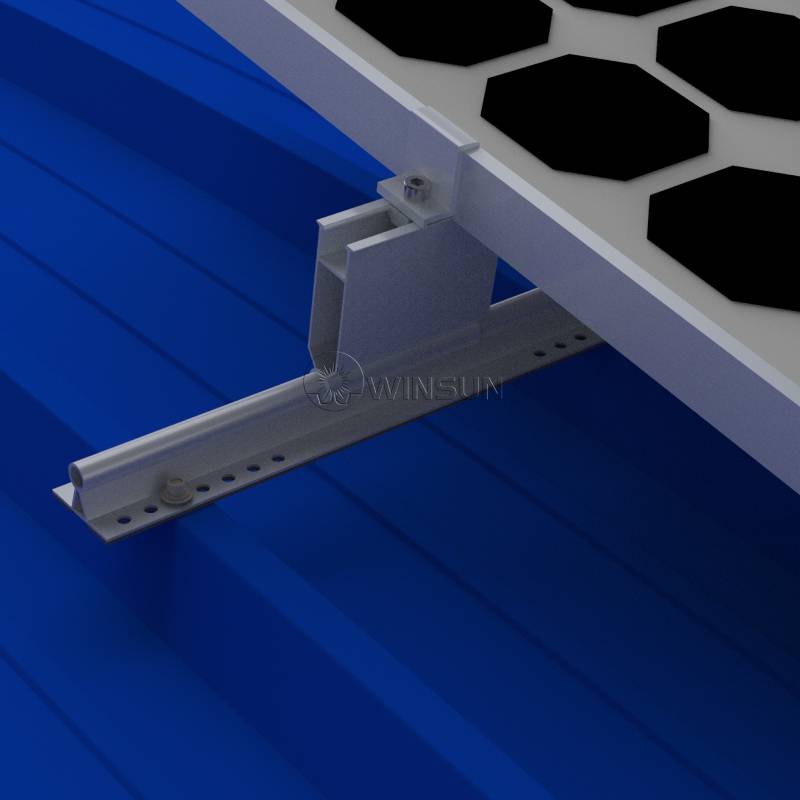

The system features our proprietary curved roof mini rail with pre-installed EPDM sealing pads, ensuring a secure, watertight connection with the metal roof surface. One of the key innovations of this model is the elevated rear foot, which allows for angle adjustment of the solar panels, enabling optimal tilt for increased solar energy output even on curved surfaces.

Key Features:

Perfect Fit for Curved and Arched Roofs

The adjustable mini rail bracket system ensures tight surface conformity with various curved roof shapes, improving stability and visual integration.

Adjustable Tilt Angle for Maximum Efficiency

Rear brackets are designed with increased height, allowing installers to fine-tune the solar panel tilt angle for optimal orientation.

Waterproof Design with Pre-installed EPDM Pads

The base of the mini rail includes factory-mounted EPDM rubber pads to enhance waterproof performance during direct mounting onto corrugated metal roofs.

Modular and Quick to Install

The compact design reduces the number of components, shortens installation time, and minimizes labor costs—ideal for both commercial and industrial rooftop PV systems.

Details
